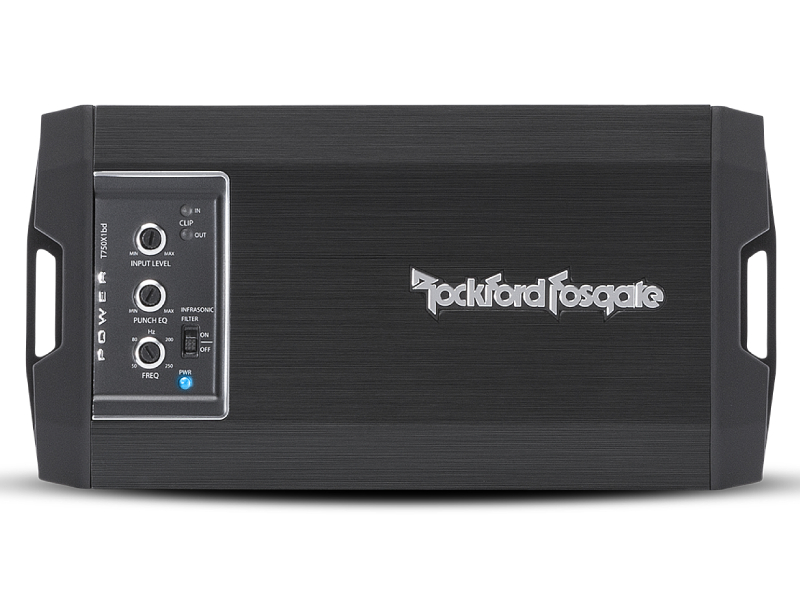

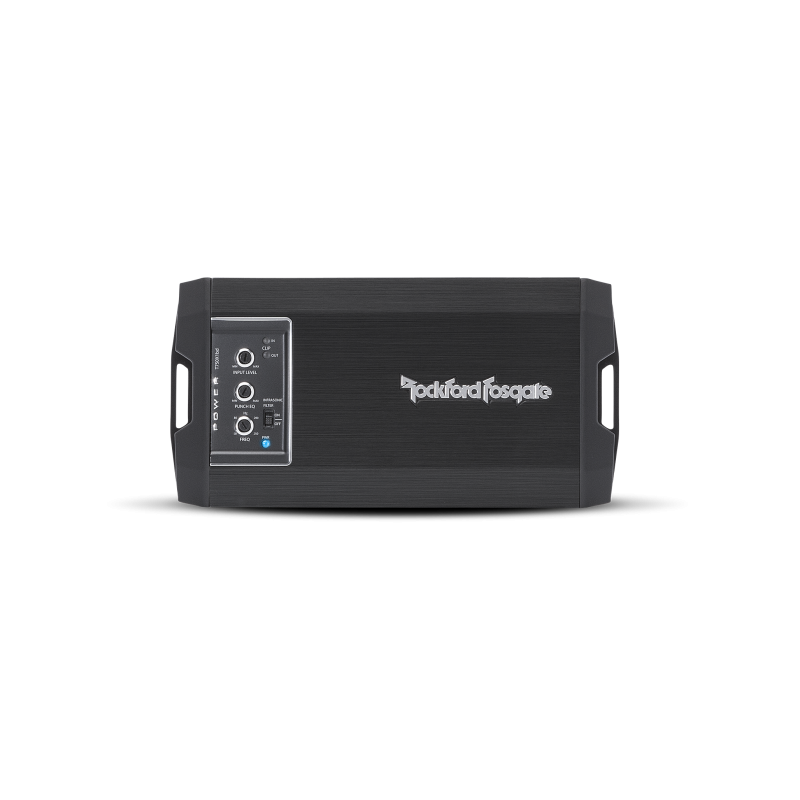

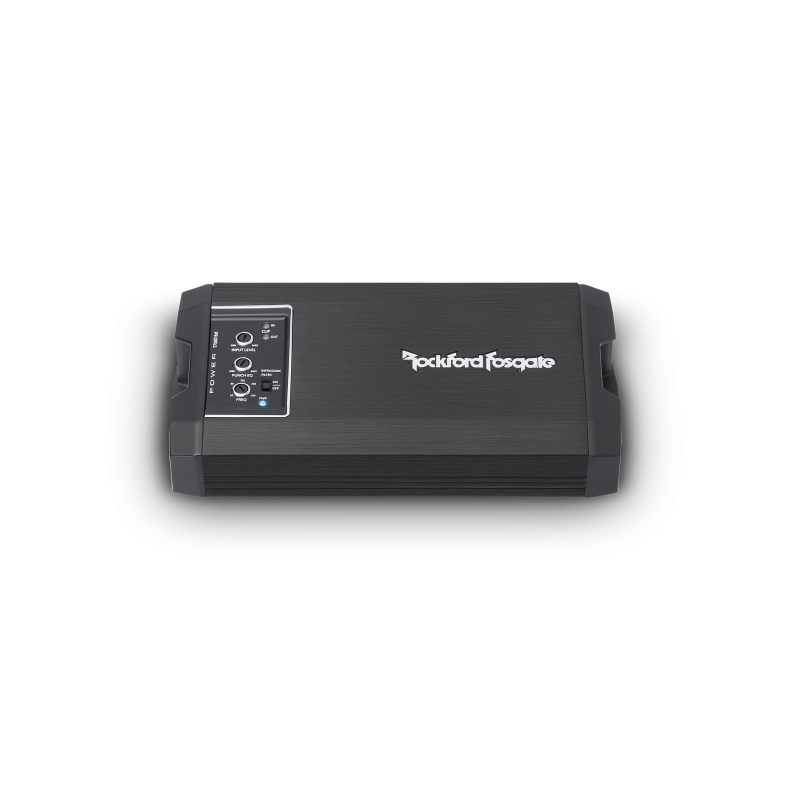

The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology. Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers. This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

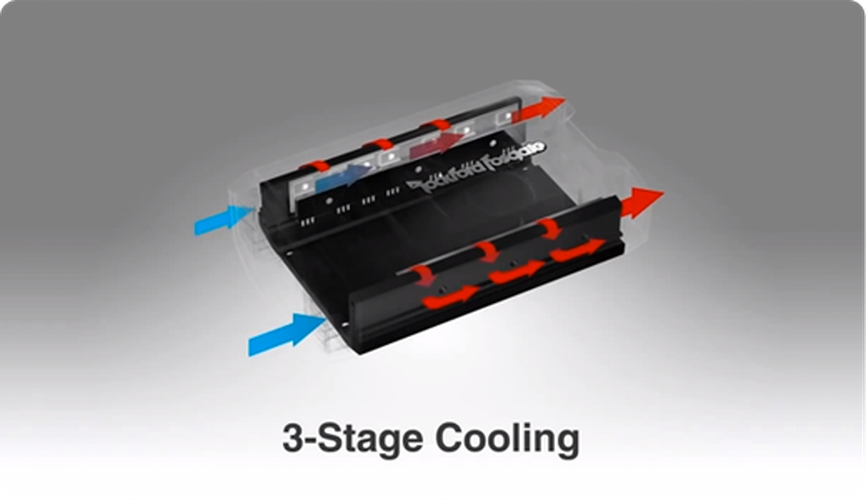

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

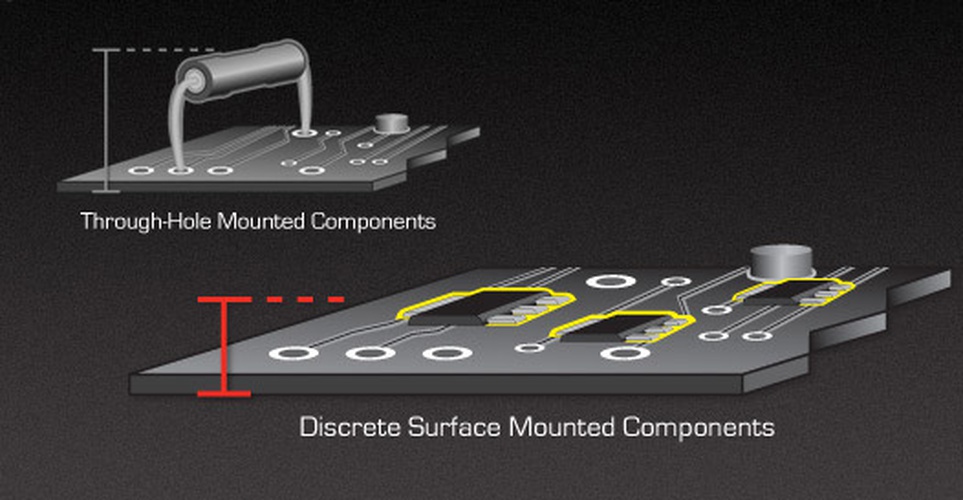

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
|Number of Channels
|Total Power (Sum of Rated Power)
|Rated Power (RMS Continuous Power)
|500 Watts x 1 @ 4-Ohm
750 Watts x 1 @ 2-Ohm
750 Watts x 1 @ 1-Ohm
|Dynamic Power (PVC/PowerCube®)
|538 Watts x 1 @ 4-Ohm
909 Watts x 1 @ 2-Ohm
990 Watts x 1 @ 1-Ohm
|20Hz - 230Hz +/-1dB
|150 mV to 12 V
|Circuit Topology Class
|Total Harmonic Distortion (THD+Noise)
1-Ohm: <1.0% above 35 Hz
|High/Low Level Input: 4-Pin harness
|Bass: 0 to +18 dB @ 45 Hz
|Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
Infrasonic: 28Hz @ 12dB/Octave Butterworth
|Optional PLC2 provides Punch Level Control
|Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
|Power Wire Gauge

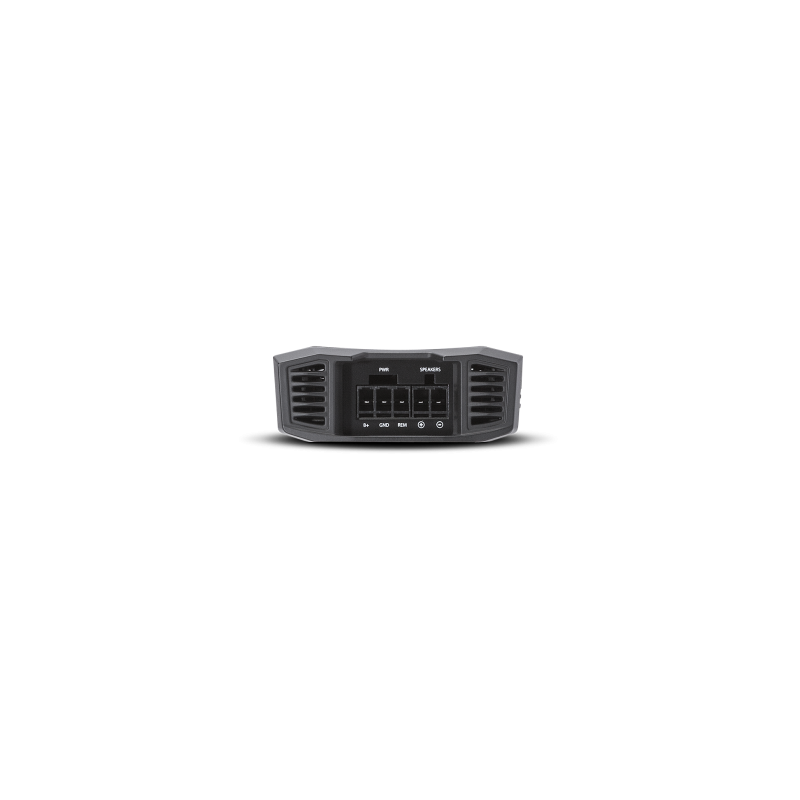

|Power Input Connector
|Detachable Compression Terminal
|Speaker Wire Gauge
|Speaker Output Connector
|Detachable Compression Terminal
|Dual Fan Cooled
|9 - 16 VDC
|Recommended Fuse (not included)
|Dimensions (H x W x D)
|1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
|3.44 Lbs. (1.56 Kg.)
