Rockford Fosgate PBR300X2

Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $449.99 CAD
Buy Online
Availability
Schedule Delivery

Literature

The PBR300X2 is a 300 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles.

Overview

The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. It is great for smaller stealth installations, as well as for motorcycles and recreational vehicles.

  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • Ultra compact chassis
  • High level inputs
  • MOSFET output stage
  • 12dB/octave Butterworth crossover
  • 1 Year Warranty

Technologies

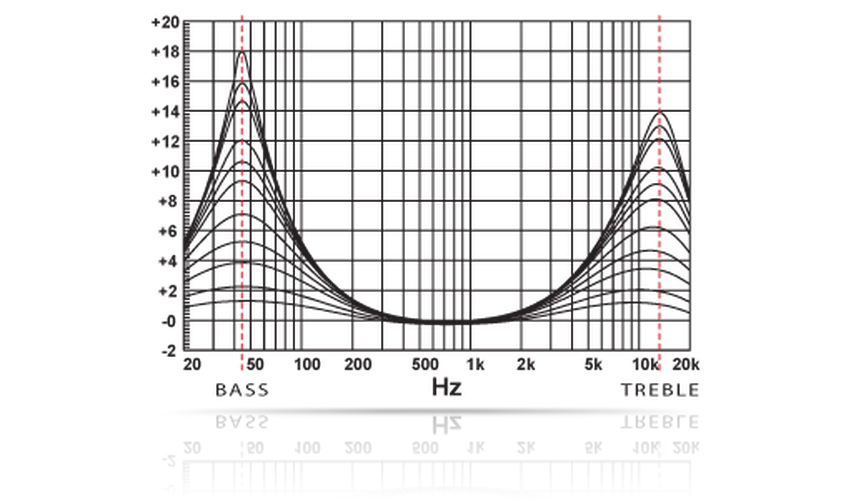

Punch EQ2

Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.

Class BR

Stores energy and dynamically boosts rail voltage to create power on demand.

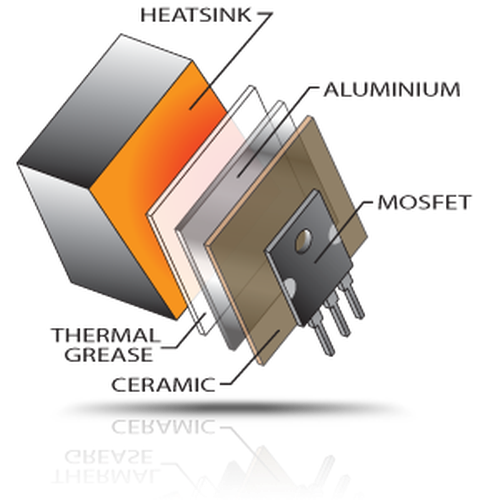

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

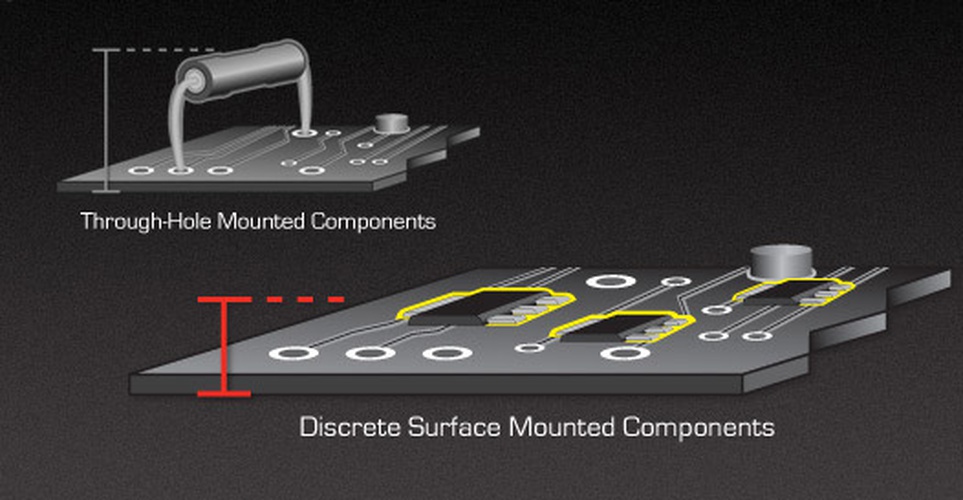

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications
Number of Channels2
Total Power (Sum of Rated Power)300 Watts
Rated Power (RMS Continuous Power)100 Watts x 2 @ 4-Ohm
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®)114 Watts x 2 @ 4-Ohm
160 Watts x 2 @ 2-Ohm
387 Watts x 1 @ 4-Ohm Bridged
BridgeableYes
Frequency Response20Hz - 20kHz +/-3dB
Input Sensitivity150 mV - 11 V
Circuit Topology ClassClass BR
Efficiency (average)68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHigh/Low Level Input: 4-Pin harness
Hi-Level Sensitivity: Variable DC offset sensitivity
Signal Output-
Tone ControlsOptional Remote Punch EQ
Crossover ControlsHigh-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote ControlsOptional PEQ provides 0dB to +18dB @ 45Hz
Visual IndicatorsPower/Protect, BRT (Boost)
Power Wire Gauge10 AWG
Power Input ConnectorDetachable Compression Terminal
Speaker Wire Gauge16 AWG
Speaker Output Connector4-Pin Harness
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)50 A
Average Current Draw (13.8V Music)23 A
Max. Current Draw (13.8V Sinewave)45 A
Suggested Alternator75 A
Dimensions (H x W x D)1.53 x 4.25 x 6.75 (in.)
3.90 x 10.8 x 17.2 (cm)
Shipping Weight2.8 Lbs. (1.27 Kg.)
