Rockford Fosgate T1000X5AD

Rockford Fosgate Power 1000 Watt Class-ad 5-Channel Amplifier - T1000X5AD



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $1,489.99 CAD
Buy Online
Availability
Schedule Delivery

Literature

The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

Overview

The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

  • Class BD
  • Rockford Fosgate proprietary Class AD technology
  • Differential inputs with high level auto turn-on feature
  • 4/2 Ohm muti-impedance Constant Power
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology
  • Dual extruded heat sinks
  • All other normal Rockford protection schemes
  • CEA-2006 and CE compliant
  • Discrete surface mount technology
  • 2-Year Warranty

Technologies

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Class AD

This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

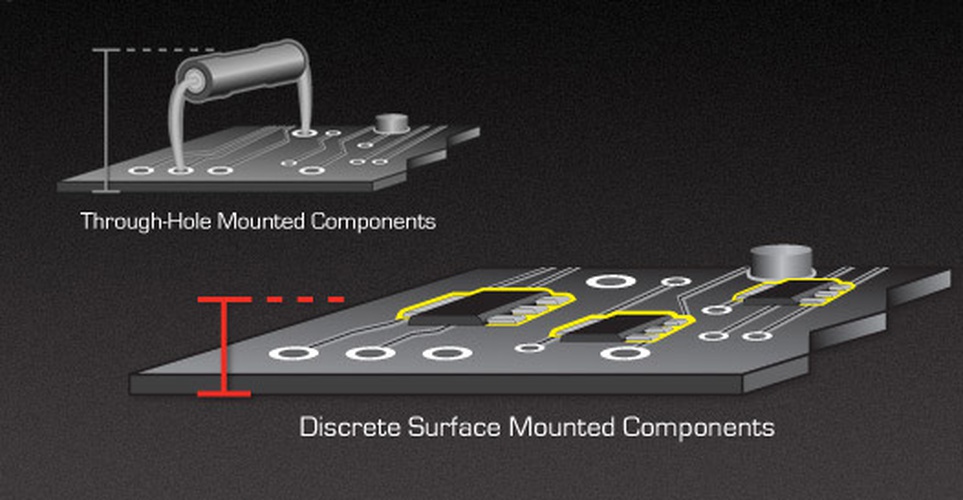

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

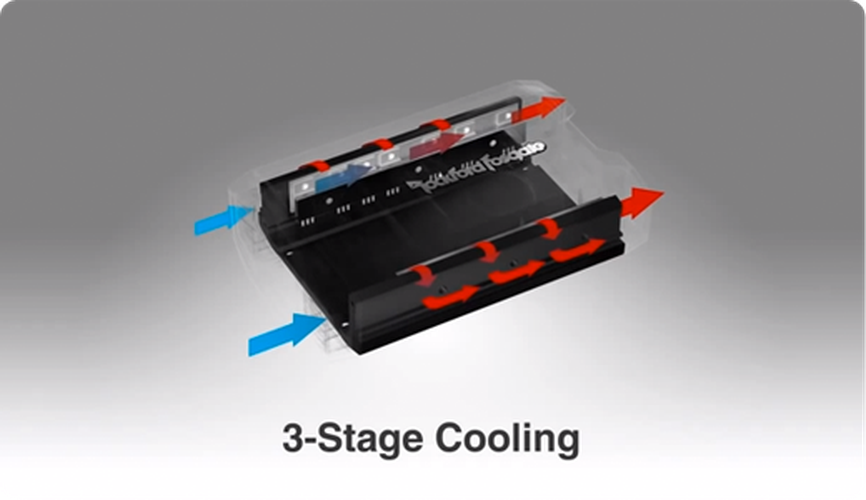

3-Stage Airflow

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications
Number of Channels5
Total Power (Sum of Rated Power)1000 Watts
Rated Power (RMS Continuous Power)100 Watts x 4 + 400 Watts x 1 @ 4Ω
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A + 600 Watts x 1 @ 1Ω
200 Watts x 2 @ 4Ω Bridged + N/A
Dynamic Power (PVC/PowerCube®)138 Watts x 4 + 487 Watts x 1 @ 4Ω
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A + 663 Watts x 1 @ 1Ω
225 Watts x 2 @ 4Ω Bridged + N/A
BridgeableYes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response20Hz - 20kHz
Input Sensitivity150 mV to 12 V
Circuit Topology ClassClass AD + Class BD (Sub)
Efficiency (average)>85%
Total Harmonic Distortion (THD+Noise)4 Ch 4-Ohm: <1.0%
4 Ch 2-Ohm: <1.0%
Sub 4-Ohm <1.0%
Sub 2-Ohm <1.0%
Sub 1-Ohm <1.0%
Signal InputFront High/Low Input: 4-Pin harness
Rear High/Low Input: 4-Pin harness
Sub High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Signal Output
Tone ControlsFront/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
Front/Rear: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45 Hz
Crossover ControlsHigh-Pass: 50Hz - 250Hz @ 12dB/Octave
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Remote ControlsOptional PLC2 provides Punch Level Control
Visual IndicatorsPower: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge4 AWG
Power Input ConnectorDetachable Compression Terminal
Speaker Wire GaugeFront/Rear: 16 AWG
Sub: 10 AWG
Speaker Output ConnectorFront: 4-Pin Harness
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
CoolingDual Fan Cooled
Recommended Fuse (not included)100 A
Dimensional Diagram
Dimensions (H x W x D)1.6 x 4.3 x 12 (in.)
4.1 x 10.8 x 30.5 (cm)
