Rockford Fosgate R2D4-10

Rockford Fosgate Prime R2 10 Inch 4-Ohm DVC Subwoofer - R2D4-10



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$159.99
Savings$30.00
Our Price $129.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

Car Audio Fanatics wanting big bass can rely on the Prime R2D4-10 subwoofer. This 10” subwoofer handles 250 Watt RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

Overview

Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • 1 Year Warranty

Technologies

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

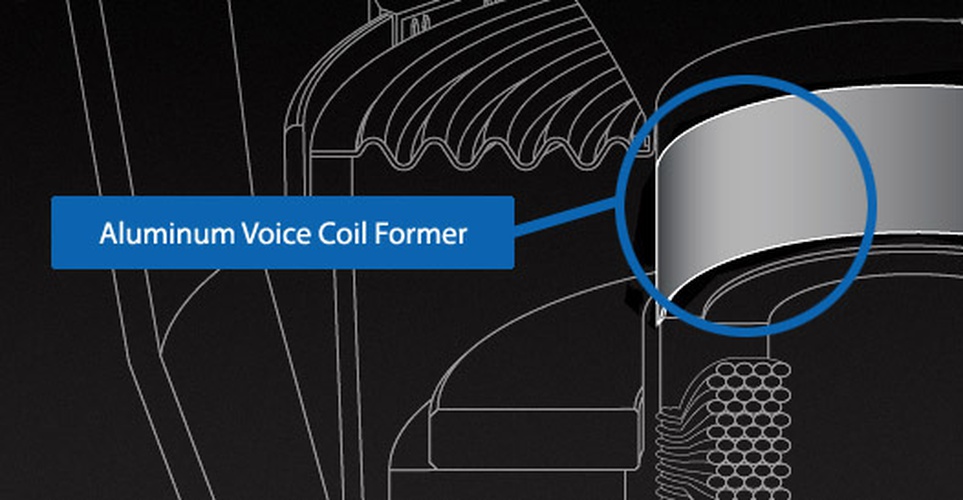

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Specifications
Size10"
Magnet Weight (oz)43 oz. (1.22 kg)
Shipping Weight8.8 Lbs. (3.99 kg)
SPL (dB @ 1w/1m)86.6
Xmax (mm)6.5
Cutout Diameter9.125 in. (232 mm)
Woofer Displacement0.039 cu. ft. (1.1 Liters)
Le (mH)3.9
Nominal ImpedanceDual 4-Ohm
Voice Coil Diameter2" (51 mm)
Speaker ConnectorDual 12 AWG compression
Mounting Depth4.319 in. (109 mm)
Fs (Hz)34.9
Qts0.53
Qes0.58
Qms6.44
Vas (Liters)38.4
Power Handling (Watts RMS)250 Watts RMS
500 Watts Max
Re (Ohms)7.83
Sd (cm2)339.8
Subwoofer TypeStandard
Voice Coil TypeDual Voice Coil
Sealed Box Volume (Vb)0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)1.4 cu. ft. (39.6 Liters)
