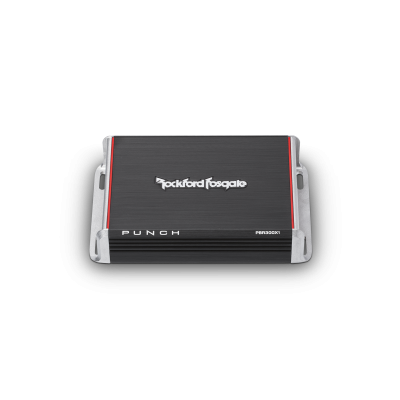

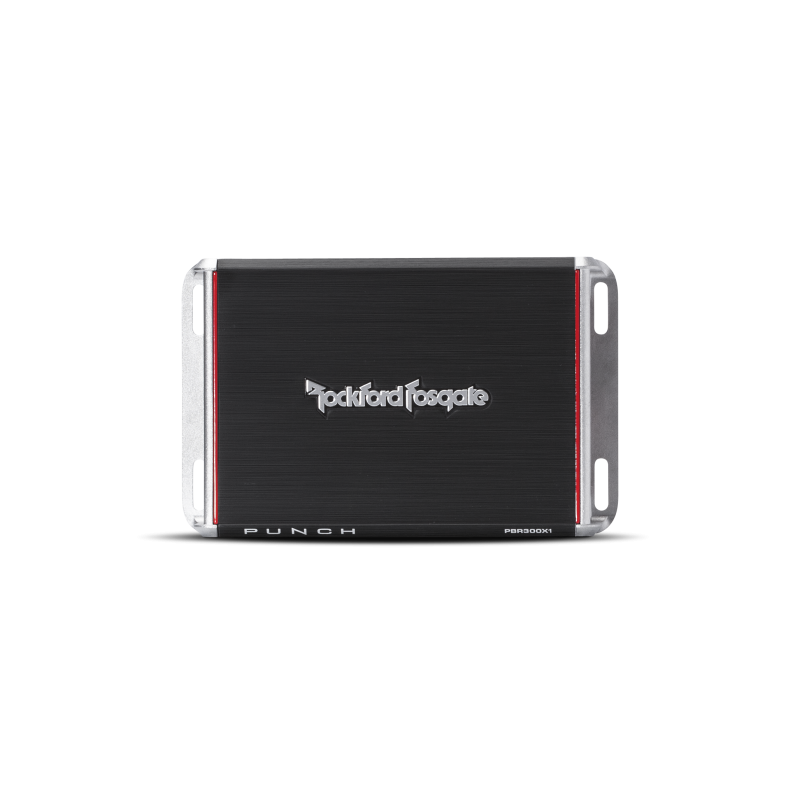

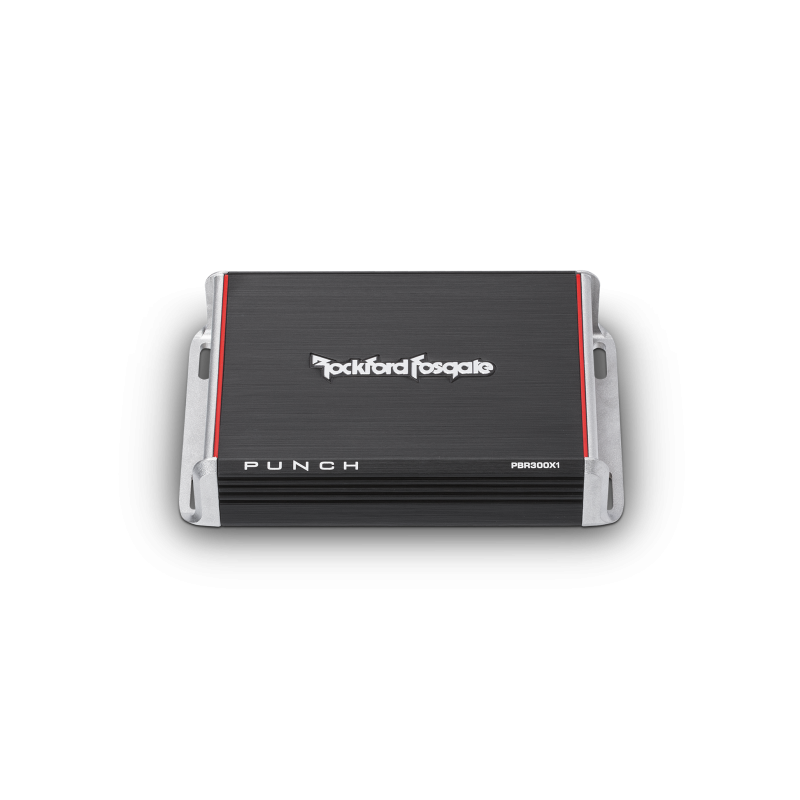

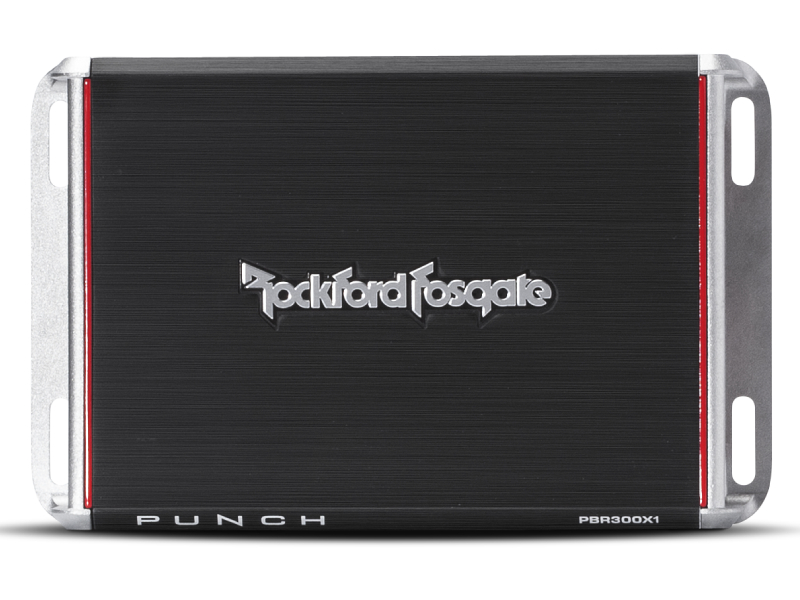

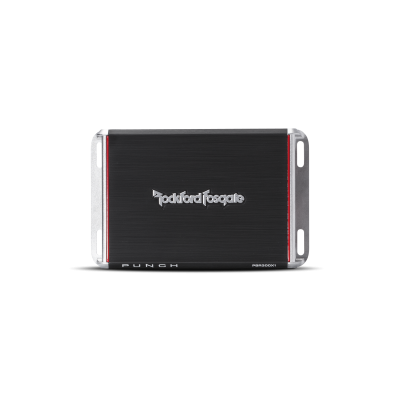

Rockford Fosgate PBR300X1

Rockford Fosgate Punch 300 Watt Mono Amplifier - PBR300X1



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $449.99 CAD
Buy Online
Availability
Schedule Delivery

Literature

The Punch PBR300X1 is a 300 Watt mono amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in motorcycles, ATVs and hybrid-electric vehicles without sucking a lot of juice from your electrical system.

Overview

The PBR300X1 is a mono amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles.

  • MOSFET output stage
  • 12dB/octave Butterworth crossover
  • High level inputs
  • Ultra compact chassis
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • 1 Year Warranty

Technologies

Punch EQ2

Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.

Class BR

Stores energy and dynamically boosts rail voltage to create power on demand.

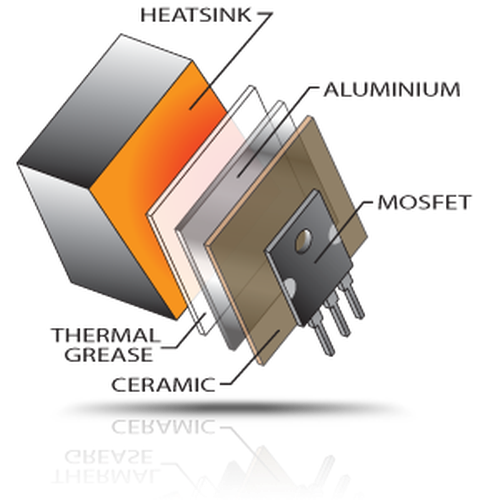

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

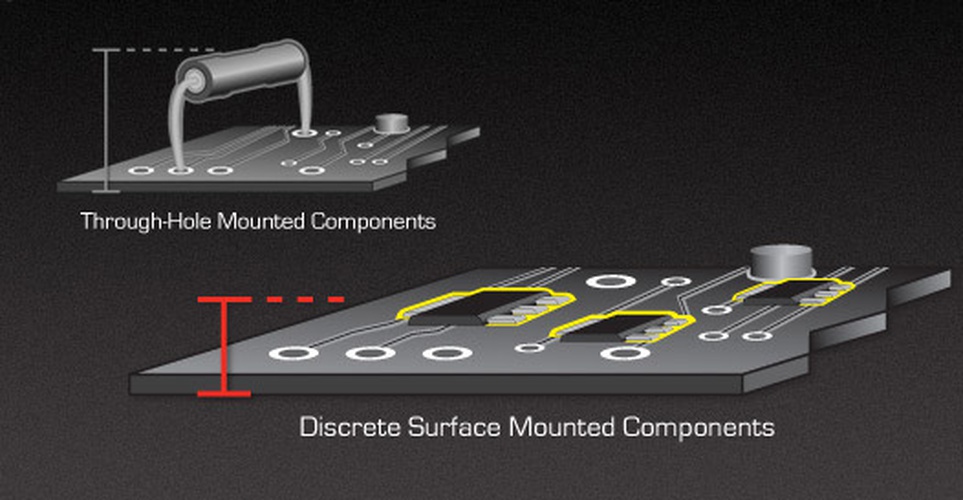

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications
Number of Channels1
Total Power (Sum of Rated Power)300 Watts
Rated Power (RMS Continuous Power)75 Watts x 1 @ 4-Ohm
150 Watts x 1 @ 2-Ohm
300 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®)96 Watts x 1 @ 4-Ohm
189 Watts x 1 @ 2-Ohm
326 Watts x 1 @ 1-Ohm
BridgeableNo
Frequency Response20Hz - 250Hz +/-3dB
Input SensitivityLow-Level: 150 mV - 4 V
High-Level: 400 mV - 11 V
Circuit Topology ClassClass BR
Efficiency (average)75% @ 4-Ohm
75% @ 2-Ohm
75% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHigh/Low Input Switch
High/Low Level Input: 4-Pin harness
Hi-Level Sensitivity: Variable DC offset sensitivity
Signal Output-
Tone ControlsExternal via Optional Punch EQ
Crossover ControlsLow-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth
Remote ControlsOptional PEQ provides 0dB to +18dB @ 45Hz
Visual IndicatorsPower/Protect, BRT (Boost)
Power Wire Gauge10 AWG

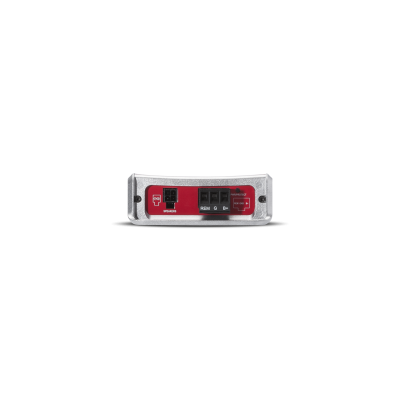

Power Input ConnectorDetachable Compression Terminal
Speaker Wire Gauge16 AWG
Speaker Output Connector4-Pin Harness
Wiring Convenience:
2 Negative Terminals (-)
2 Positive Terminals (+)
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)30 A
Average Current Draw (13.8V Music)15 A
Max. Current Draw (13.8V Sinewave)30 A
Suggested Alternator75 A
Dimensions (H x W x D)1.53 x 4.25 x 6.75 (in.)
3.90 x 10.8 x 17.2 (cm)
Shipping Weight2.76 Lbs. (1.25 Kg.)
