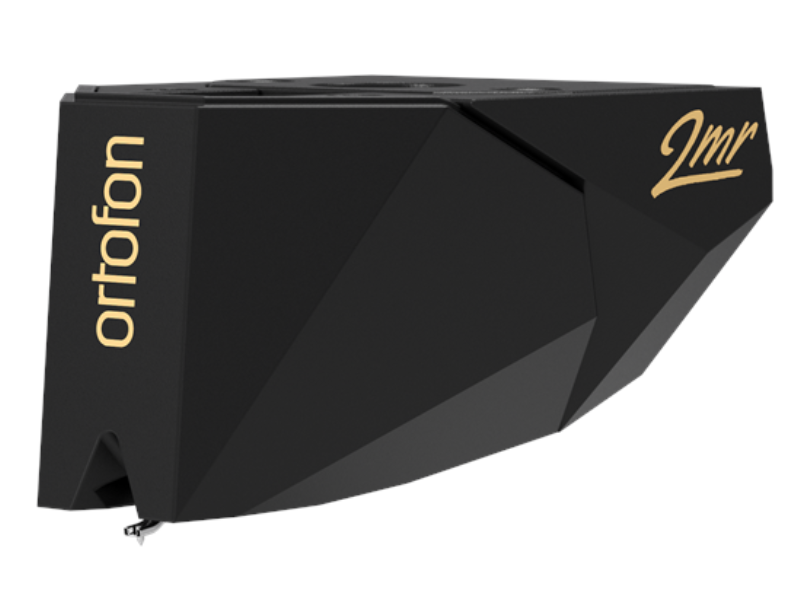

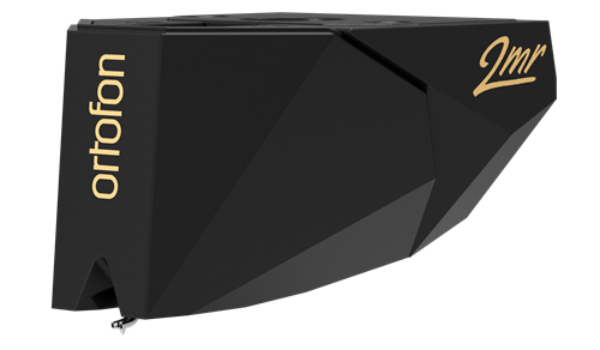

2MR: Designed for optimized fitting on low-profile turntables
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
2MR cartridge key features
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
Specifications | |
---|---|
Output voltage at 1000 Hz, 5cm/sec. | 5 mV |
Channel balance at 1 kHz | 1 dB |
Channel separation at 1 kHz | 26 dB |
Channel separation at 15 kHz | 15 dB |
Frequency response | 20-20.000 + 2 / - 0 dB |
Tracking ability at 315Hz at recommended tracking force | 80 µm |
Compliance, dynamic, lateral | 22 µm/mN |
Stylus type | Nude Shibata |
Stylus tip radius | r/R 6/50 µm |
nge | 1.4-1.7 g (14-17 mN) |
Tracking force, recommended | 1.5 g (15 mN) |
Tracking angle | 20° |
Internal impedance, DC resistance | 1.2 kOhm |
Internal inductance | 630 mH |
Recommended load resistance | 47 kOhm |
Recommended load capacitance | 150-300 pF |
Cartridge colour, body/stylus | Black/Black |
2MR cartridge weight | 6 g |
