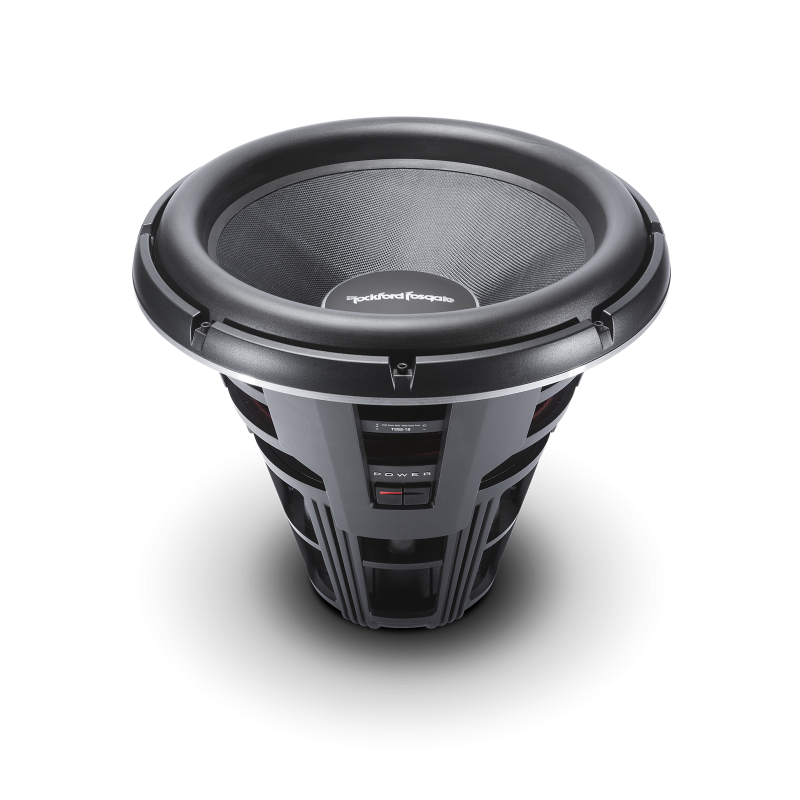

Rockford Fosgate T3S1-19

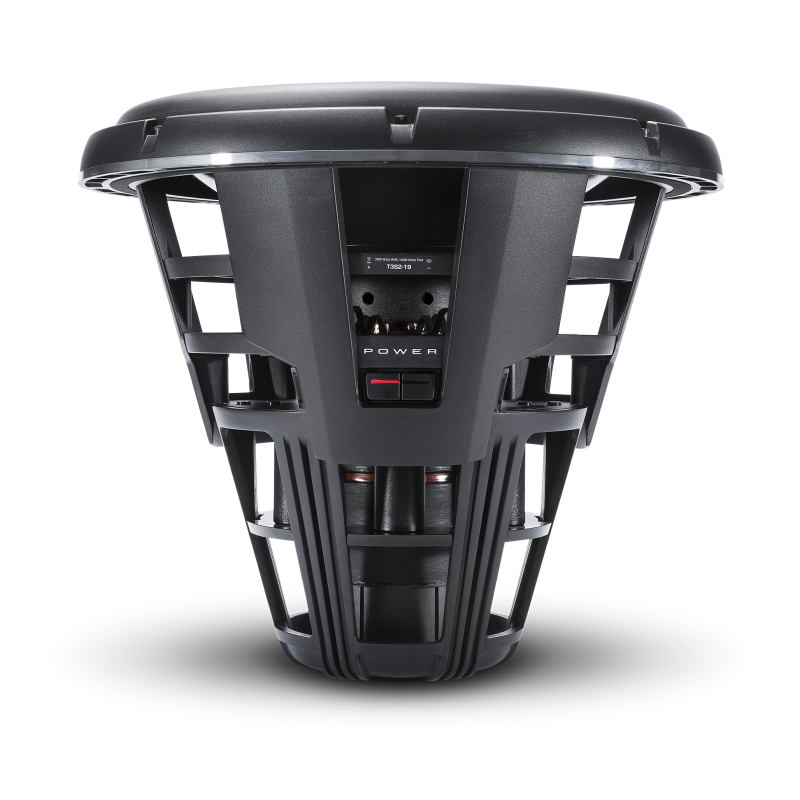

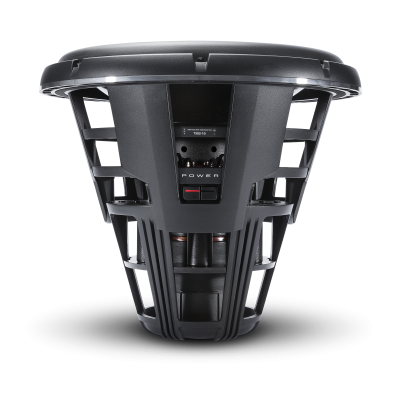

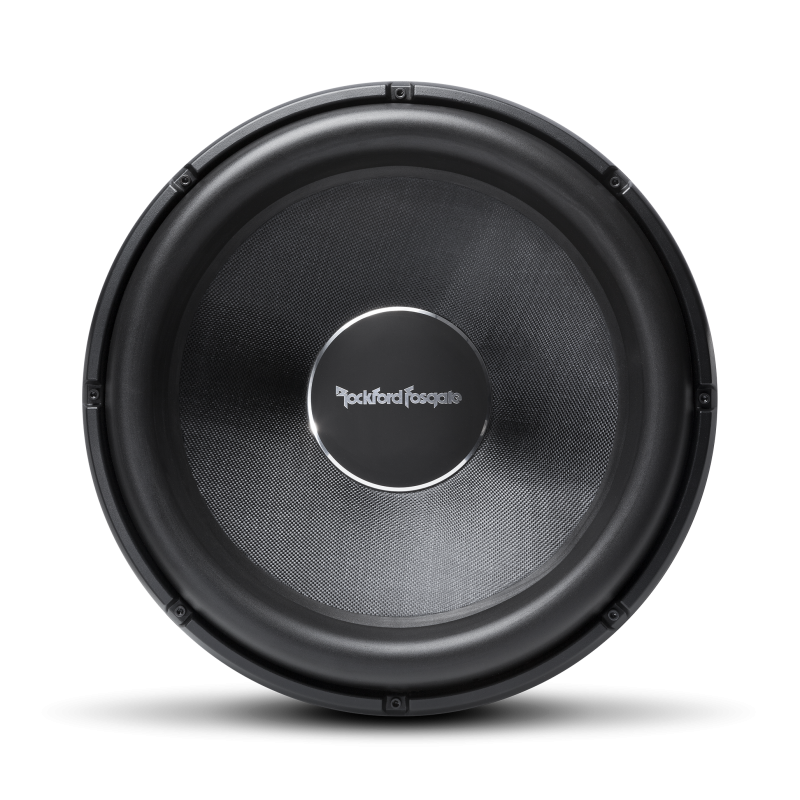

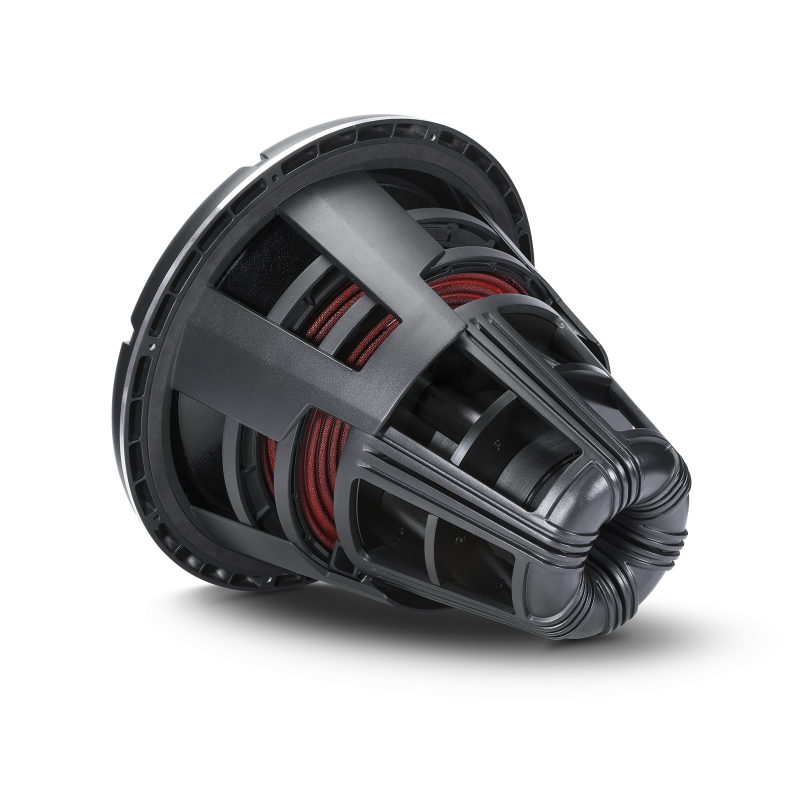

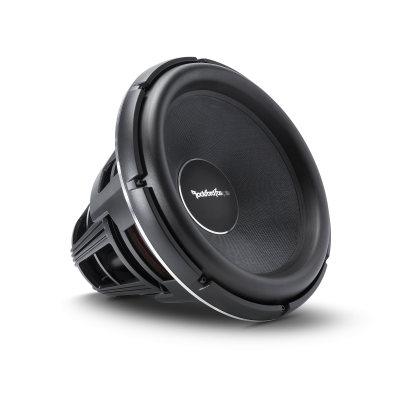

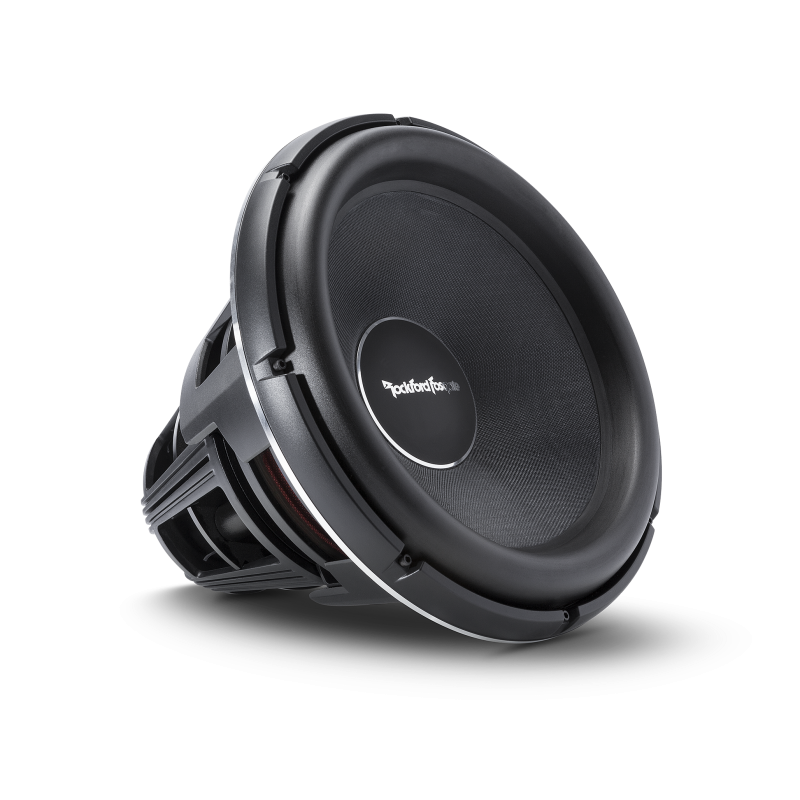

Rockford Fosgate Power T3 Single 1-Ohm Superwoofer - T3S1-19



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$3,529.99
Savings$530.00
Our Price $2,999.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Power T3S1-19 "superwoofer" has a whopping 19-inches of effective radiating cone area for deep bass and features a single 1-Ohm voice coil for easy wiring. This is the largest, most powerful subwoofer Rockford Fosgate has ever built!

Overview

The Power T3S1-19 can rightfully be classified as a super woofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride.

  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone
  • Aluminum dustcap
  • Injection molded foam surround with VAST™
  • Proprietary surround mechanical clamping ring
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins and venting
  • Custom push spring insulated 4 AWG terminals
  • Single layer edge wound aluminum 5" voice coil
  • Since voice coil design with dual (push/pull) windings
  • Integrated die cast aluminum trim ring
  • Dual gap multi-pole Neodymium push/pull motor structure
  • 1 Year Warranty

Technologies

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

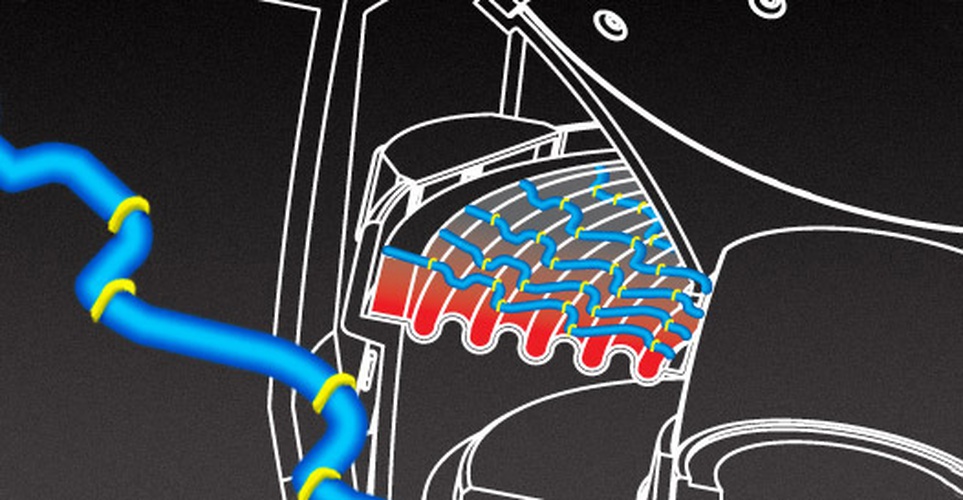

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Specifications
Magnet Weight (oz)115 oz. (3.26 Kg)
Voice Coil Diameter5.0" (127 mm)
Mounting Depth15.62 in. (396 mm)
Shipping Weight106.30 Lbs. (48.2 Kg.)
Fs (Hz)27
Qts0.32
Qms1.93
Woofer Displacement0.339 cu. ft. (9.6 Liters)
Sd (cm2)1472
Size19"
Nominal Impedance1-Ohm
Power Handling (Watts RMS)3000 Watts RMS
6000 Watts Max
Speaker Connector4 AWG Compression Terminal
SPL (dB @ 1w/1m)91
Qes0.38
Cutout Diameter17.54 in. (445 mm)
Re (Ohms)0.8
Le (mH)0.45
Vas (Liters)104.9
Xmax (mm)34
Subwoofer TypeSuperwoofer
Voice Coil TypeSingle Voice Coil
Sealed Box Volume (Vb)
Vented Box Volume (Vb)8.0 cu. ft. (226.5 Liters)
