Rockford Fosgate P1000X1BD

Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$889.99
Savings$140.00
Our Price $749.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.

Overview

With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • RCA pass-thru outputs
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • 1 Year Warranty

Technologies

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

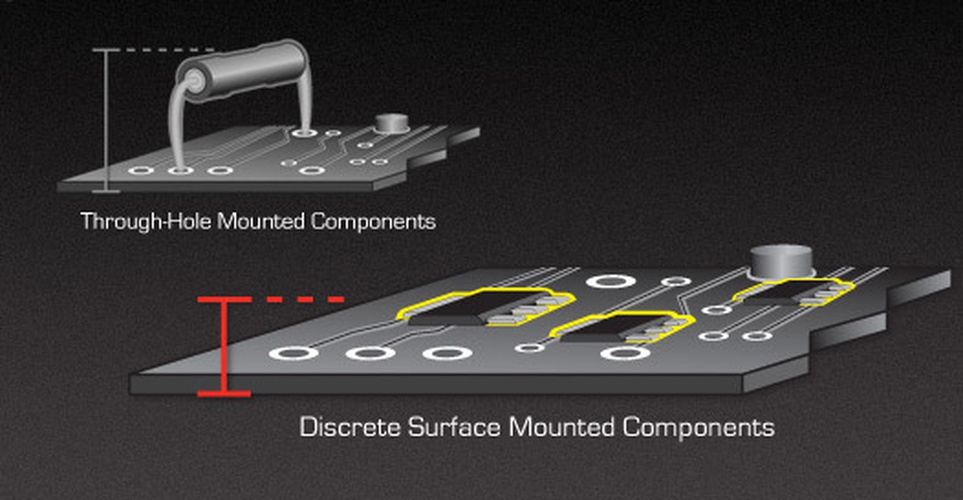

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

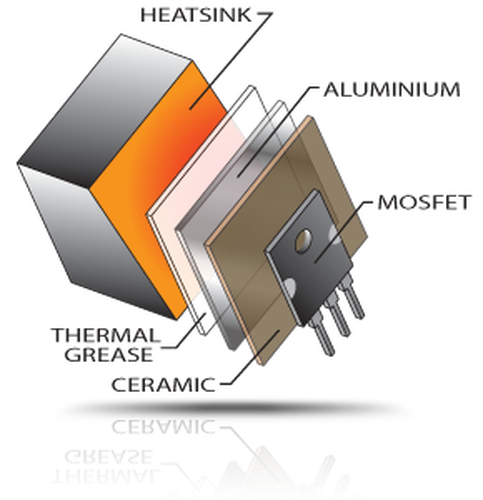

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.



C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Number of Channels1
Total Power (Sum of Rated Power)1000 Watts
Rated Power (RMS Continuous Power)300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
1000 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®)491 Watts x 1 @ 4-Ohms
874 Watts x 1 @ 2-Ohms
1,430 Watts x 1 @ 1-Ohm
BridgeableNo
Frequency Response20Hz to 250Hz +/- 1.0dB
Input Sensitivity150 mV - 12 V
Circuit Topology ClassClass BD
Efficiency (average)86% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal InputHi/Low level: 1 RCA pair
Signal OutputHi/Low level: 1 RCA pair
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz
Crossover ControlsLow-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
All-Pass: No
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge4 AWG
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)140 A
Average Current Draw (13.8V Music)65 A
Max. Current Draw (13.8V Sinewave)130 A
Suggested Alternator100 A
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight12.9 Lbs. (5.85 Kg.)
