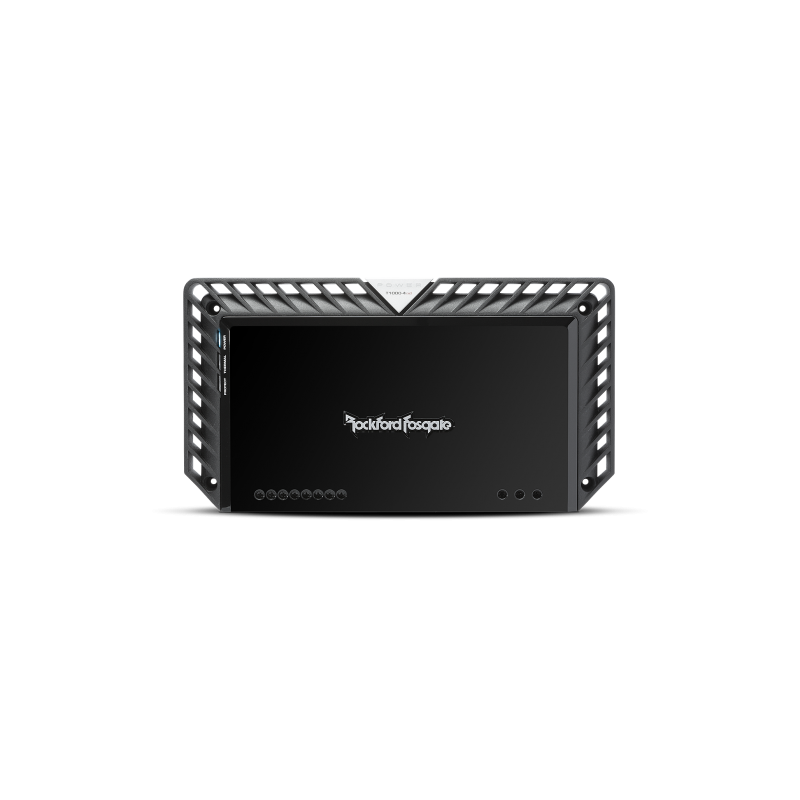

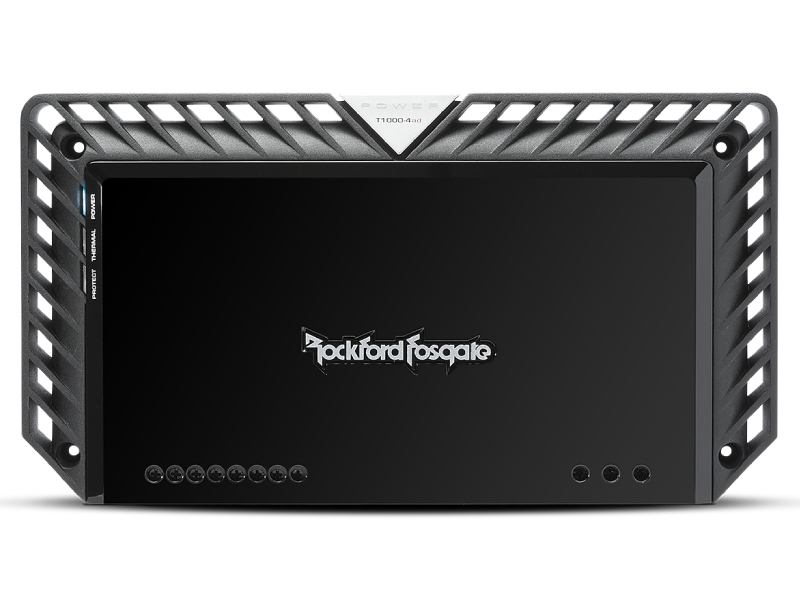

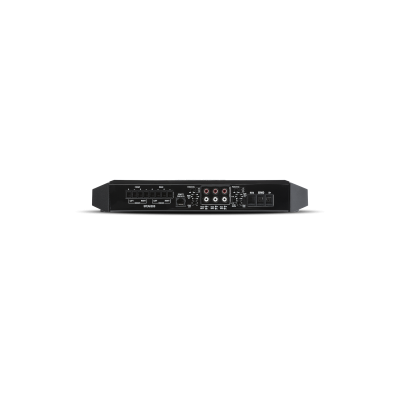

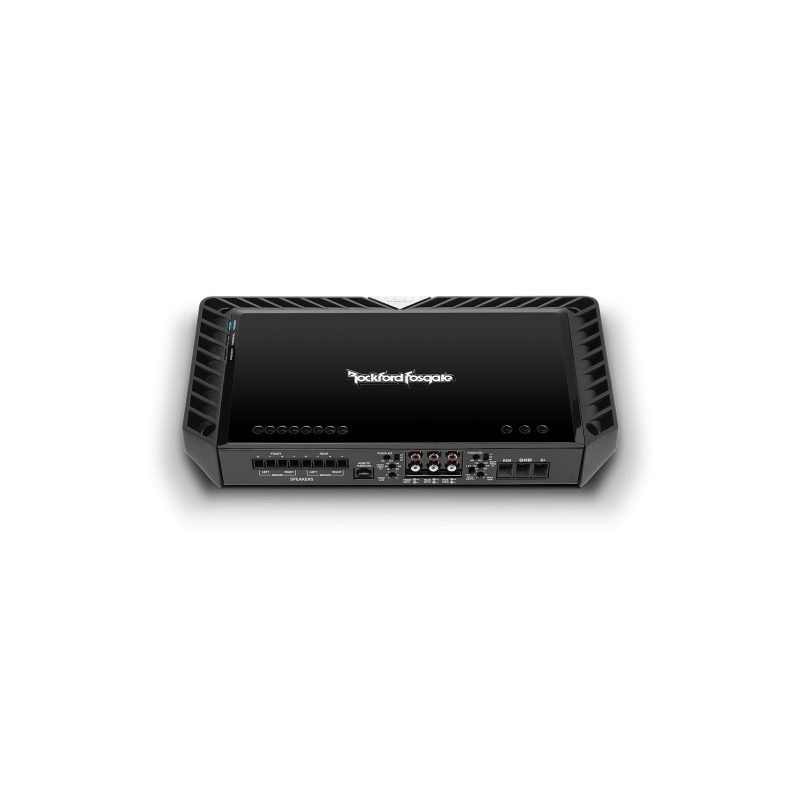

Rockford Fosgate T1000-4AD

Rockford Fosgate Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier - T1000-4AD



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,769.99
Savings$270.00
Our Price $1,499.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration.

Overview

The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.

  • 2/4 channel input switch
  • 24dB/octave crossover
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • MOSFET power supply
  • MOSFET output stage
  • RCA pass-thru outputs
  • 2-Year Warranty

Technologies

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

Class AD

This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

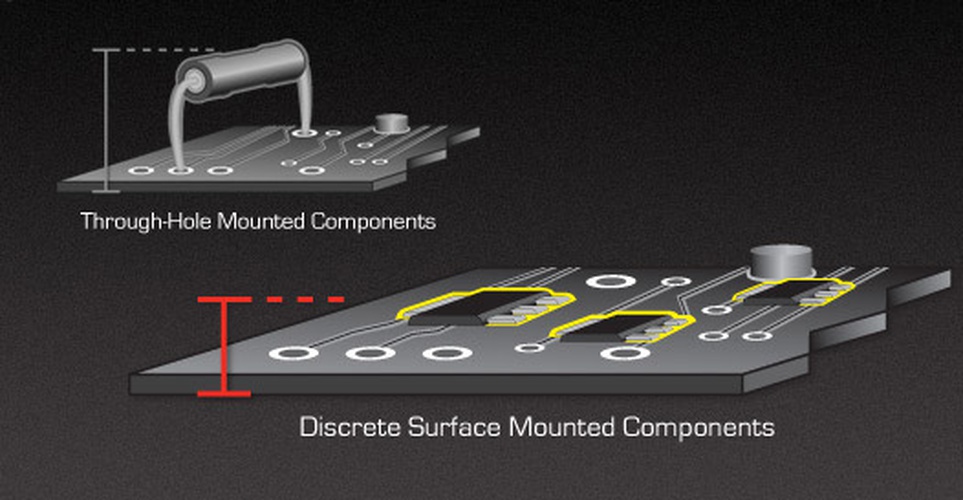

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

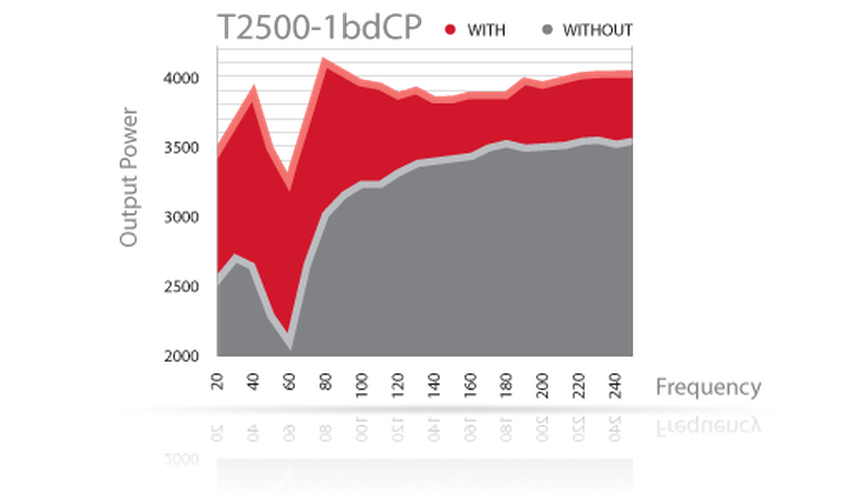

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

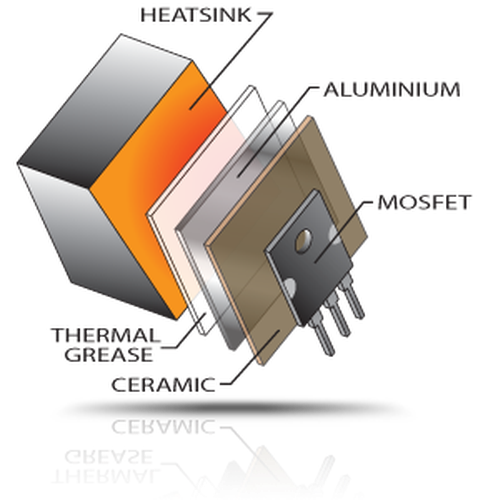

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

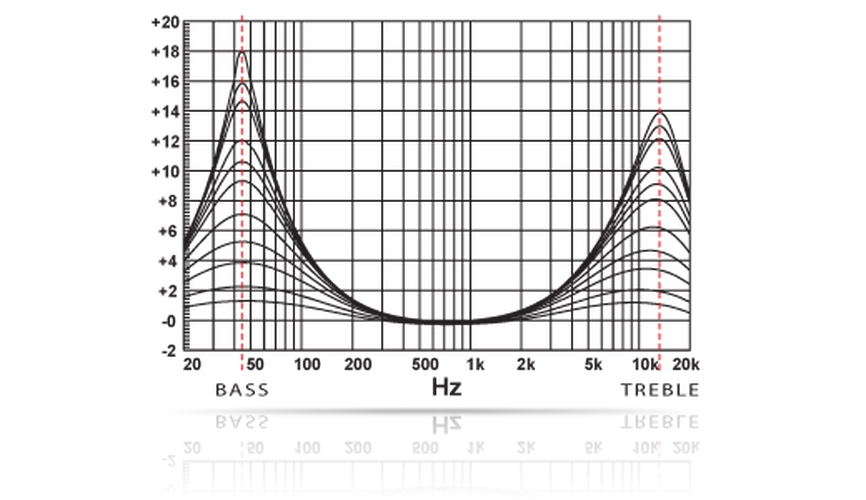

Punch EQ2

Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

4Ω/2Ω/1Ω Capable

Allows the amplifier to produce the same power into either a 4-ohm, 2-ohm or 1-ohm speaker load. Works with Constant Power to optimize power output at varying impedances.

Specifications
Number of Channels4
Total Power (Sum of Rated Power)1000 Watts RMS
Rated Power (RMS Continuous Power)250 Watts x 4 @ 4-Ohm
250 Watts x 4 @ 2-Ohm
250 Watts x 4 @ 1-Ohm
500 Watts x 2 @ 4-Ohm Bridged
500 Watts x 2 @ 2-Ohm Bridged
Dynamic Power (PVC/PowerCube®)270 Watts x 4 @ 4-Ohm 0° Res
327 Watts x 4 @ 2-Ohm 0° Res
365 Watts x 4 @ 1-Ohm 0° Res
619 Watts x 2 @ 4-Ohm Bridged
654 Watts x 2 @ 2-Ohm Bridged
BridgeableYes
Frequency Response20Hz to 20kHz +/-1dB
Input Sensitivity150 mV to 5 V
Circuit Topology ClassClass AD
Efficiency (average)84.1% @ 4-Ohm
81.6% @ 2-Ohm
81% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputFront Channels: 1 RCA pair
Rear Channels: 1 RCA pair
Input Switch: 2CH / 4CH
Signal Output1 RCA pair
Tone ControlsFront Channels:
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz
Rear Channels:
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz
Function depends upon crossover setting (LP/AP/HP)
Crossover ControlsFront Channels:
High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
Rear Channels:
High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
Remote ControlsOptional Remote PEQ
(overrides rear channel built-in Punch EQ)
Visual IndicatorsPower (Blue LED)
Thermal (Red LED)
Protect (Yellow LED)
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge8 AWG to 16 AWG
Speaker Output ConnectorBlock
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)150 A
Average Current Draw (13.8V Music)60 A
Max. Current Draw (13.8V Sinewave)120 A
Suggested Alternator75 A
Dimensions (H x W x D)2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)
Shipping Weight14.45 Lbs. (6.55 Kg.)
