Rockford Fosgate P1000X5

Rockford Fosgate Punch 1,000 Watt Class-bd 5-Channel Amplifier - P1000X5



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,119.99
Savings$170.00
Our Price $949.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.

Overview

The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • 2/4 channel input switch
  • 1 Year Warranty

Technologies

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

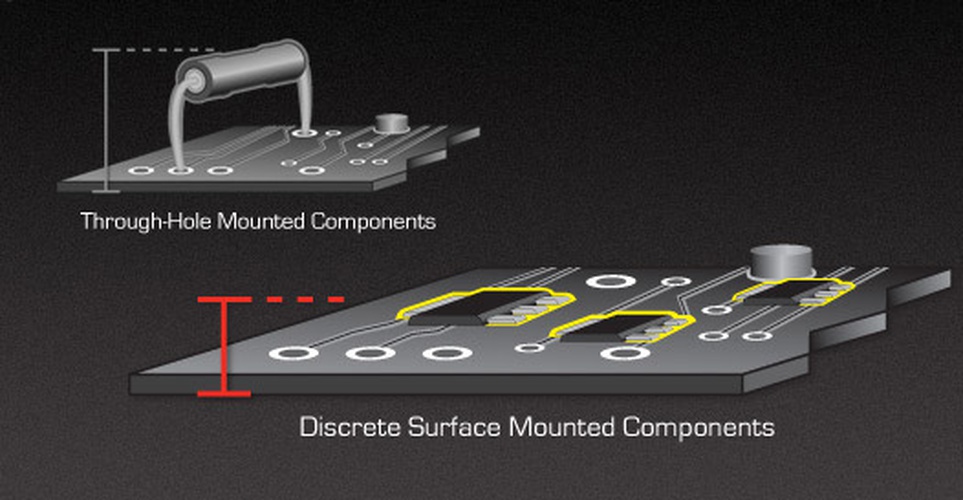

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

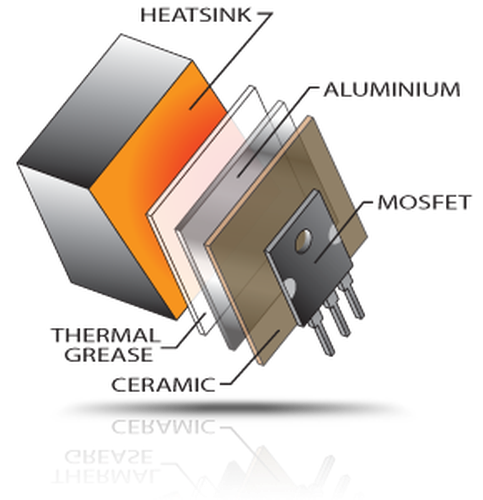

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Number of Channels5
Total Power (Sum of Rated Power)1000 Watts
Rated Power (RMS Continuous Power)75 Watts x 4 +
150 Watts x 1 @ 4-Ohm
125 Watts x 4 +
300 Watts x 1 @ 2-Ohm
N/A +
500 Watts @ 1-Ohm
Dynamic Power (PVC/PowerCube®)115 Watts x 4 +
299 Watts x 1 @ 4-Ohms 0° Res
190 Watts x 4 +
540 Watts x 1 @ 2-Ohms 0° Res
N/A +
863 Watts x 1 @ 1-Ohm 0° Res
BridgeableYes (front/rear channels)
Frequency ResponseFront/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Input Sensitivity150 mV - 12 V
Circuit Topology ClassClass A/B + Class BD (Sub)
Efficiency (average)Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)<1.0%
Signal InputInput Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Signal Output-
Tone ControlsSub:
0dB to +18dB @ 45Hz
Crossover ControlsFront: 50Hz - 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge12 AWG
Speaker Output ConnectorBlock
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)150 A
Average Current Draw (13.8V Music)75 A
Max. Current Draw (13.8V Sinewave)150 A
Suggested Alternator100 A
Dimensions (H x W x D)2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight15.3 Lbs. (6.93 Kg.)
