Rockford Fosgate T1000-1BDCP

Rockford Fosgate Power 1,000 Watt Class-bd Constant Power Amplifier - T1000-1BDCP



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$1,109.99
Savings$170.00
Our Price $939.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Power T1000-1bdCP is a 1,000 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1000-1bdCP is optimized exclusively for use with subwoofers.

Overview

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1000-1bdCP is based on the legendary T1000-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. The T1000-1bdCP, pumps out a heart-stopping Kilowatt, enough power for any reasonably sane subwoofer system.

  • 24dB/octave crossover
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • MOSFET power supply
  • MOSFET output stage
  • RCA pass-thru outputs
  • Infrasonic filter
  • 2-Year Warranty

Technologies

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

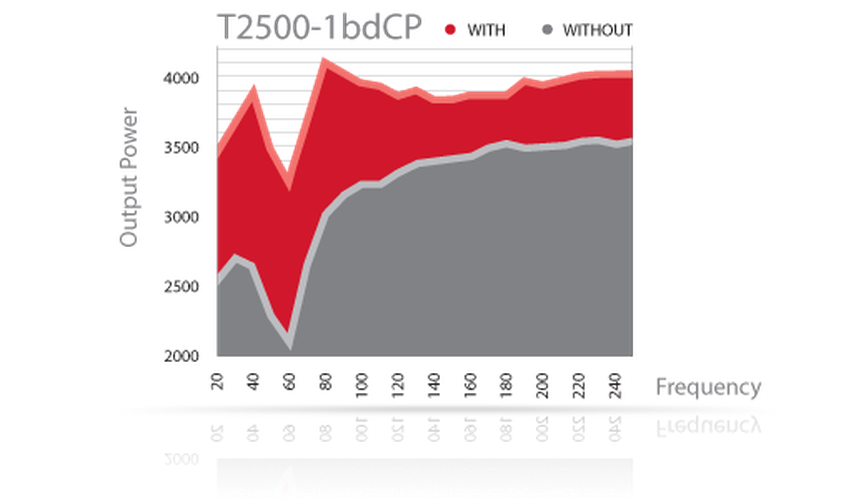

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

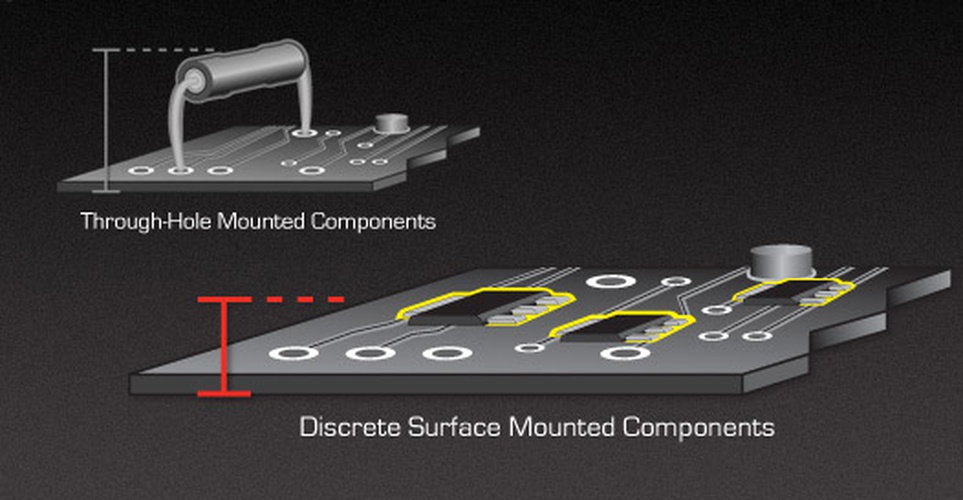

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

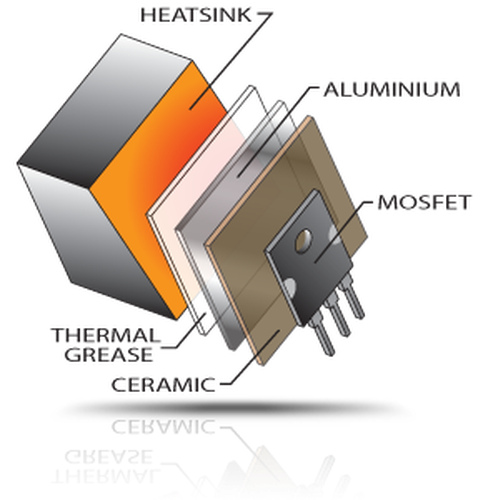

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

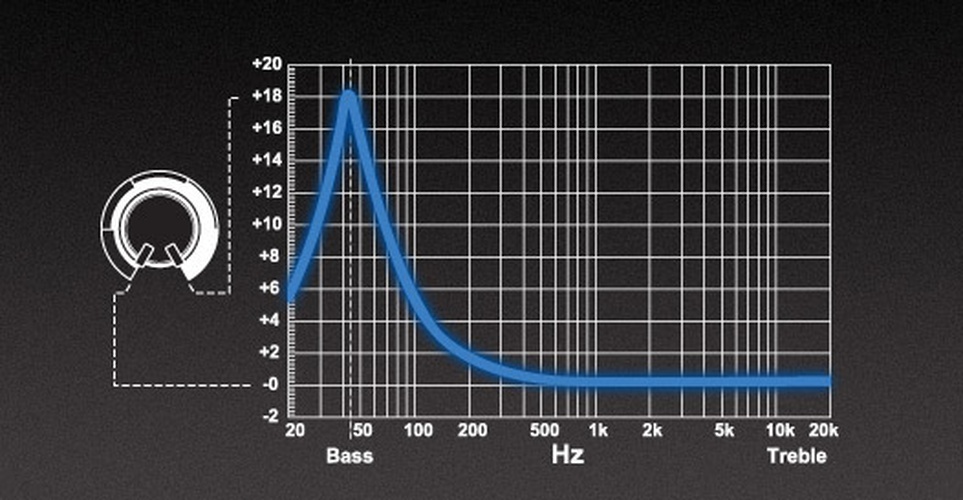

Punch Bass EQ

Pioneered by Jim Fosgate in the early 70's, Punch Bass compensates for acoustical problems common in all cars.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

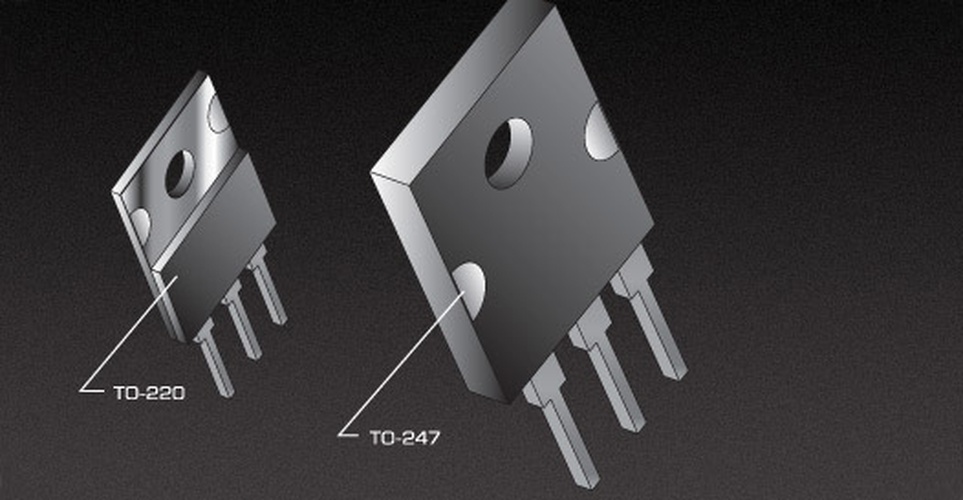

TO-247 MOSFETs

(left-OLD | right-NEW) Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.

Specifications
Number of Channels1
Total Power (Sum of Rated Power)1000 Watts RMS
Rated Power (RMS Continuous Power)700 Watts x 1 @ 4-Ohm
1000 Watts x 1 @ 2-Ohm
1000 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®)772 Watts x 1 @ 4-Ohms
1299 Watts x 1 @ 2-Ohms
1395 Watts x 1 @ 1-Ohm
BridgeableNo
Frequency Response20Hz to 250Hz +/-0.5dB
Input Sensitivity150 mV to 4 V
Circuit Topology ClassClass BD
Efficiency (average)85.6% @ 4-Ohm
82.1% @ 2-Ohm
70% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal Input1 RCA pair
Signal Output1 RCA pair
Tone ControlsBass: 0dB to +18dB @ 45Hz
Crossover ControlsLow-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth
Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
Remote ControlsOptional Remote PEQ
(overrides built-in Punch Bass)
Visual IndicatorsPower (Blue LED)
Thermal (Red LED)
Protect (Yellow LED)
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorBlock
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)150 A
Average Current Draw (13.8V Music)70 A
Max. Current Draw (13.8V Sinewave)140 A
Suggested Alternator100 A
Dimensions (H x W x D)2.14 x 8.14 x 13.66 (in)
5.44 x 20.68 x 34.69 (cm)
Shipping Weight12.2 Lbs. (5.53 Kg.)
