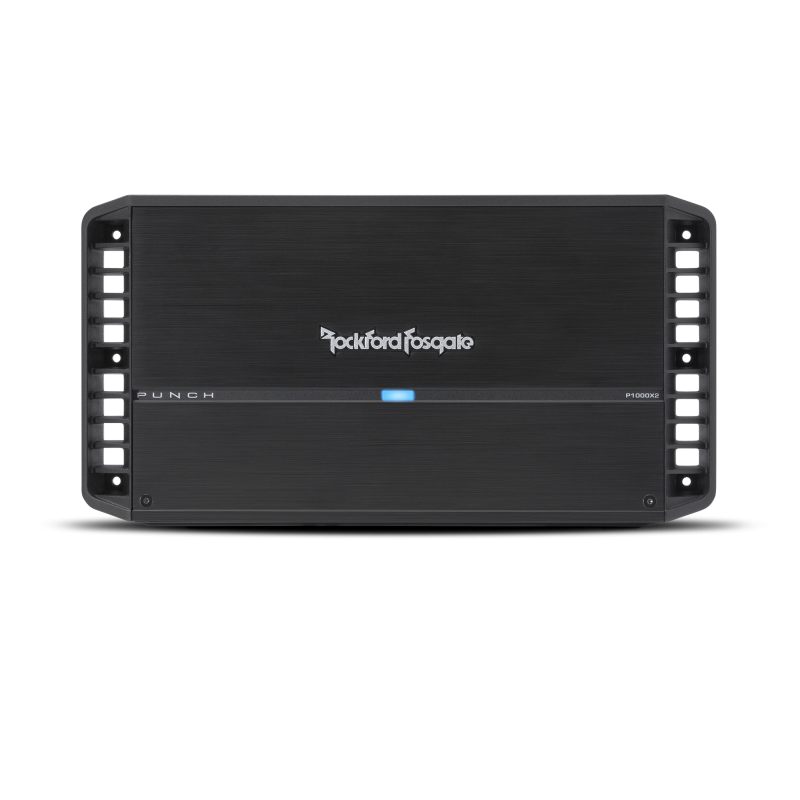

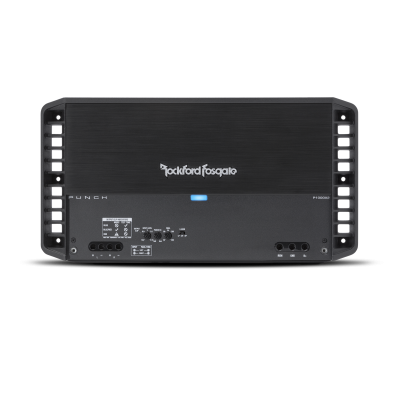

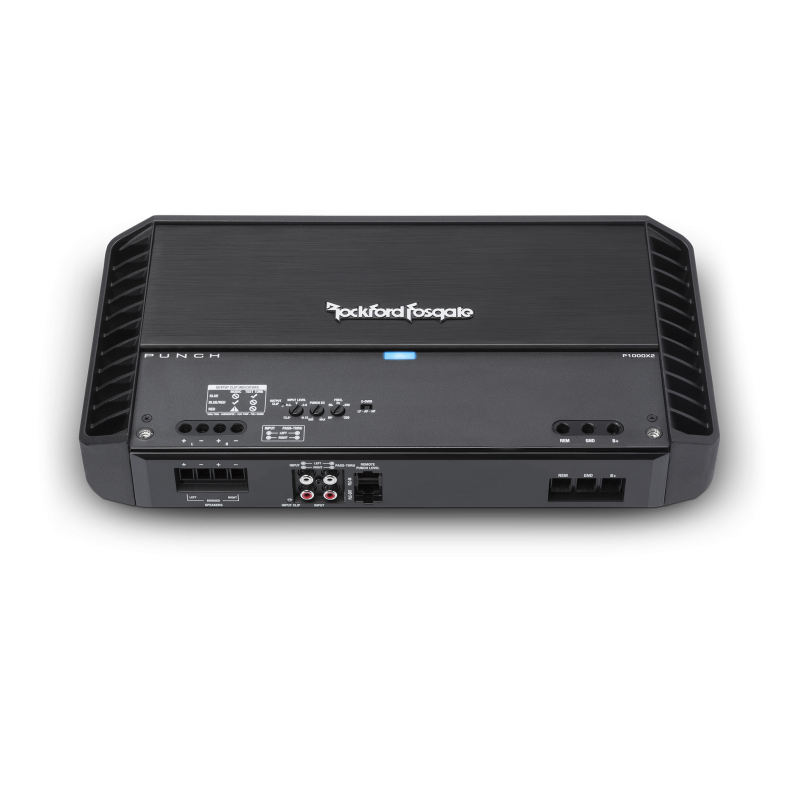

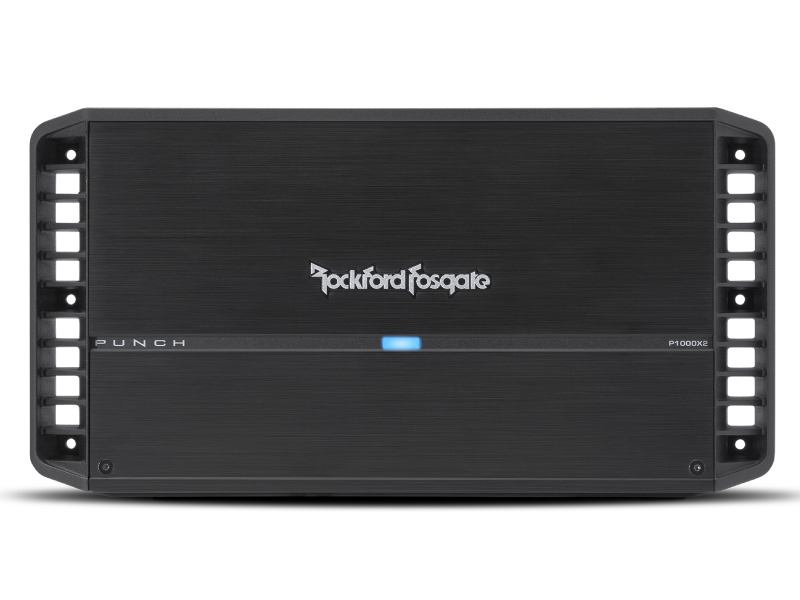

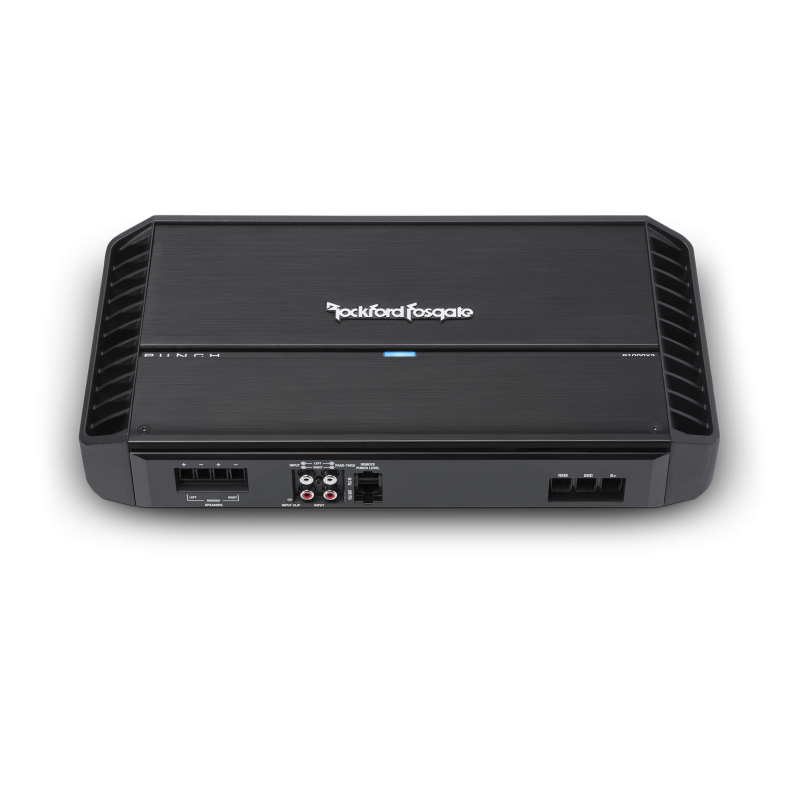

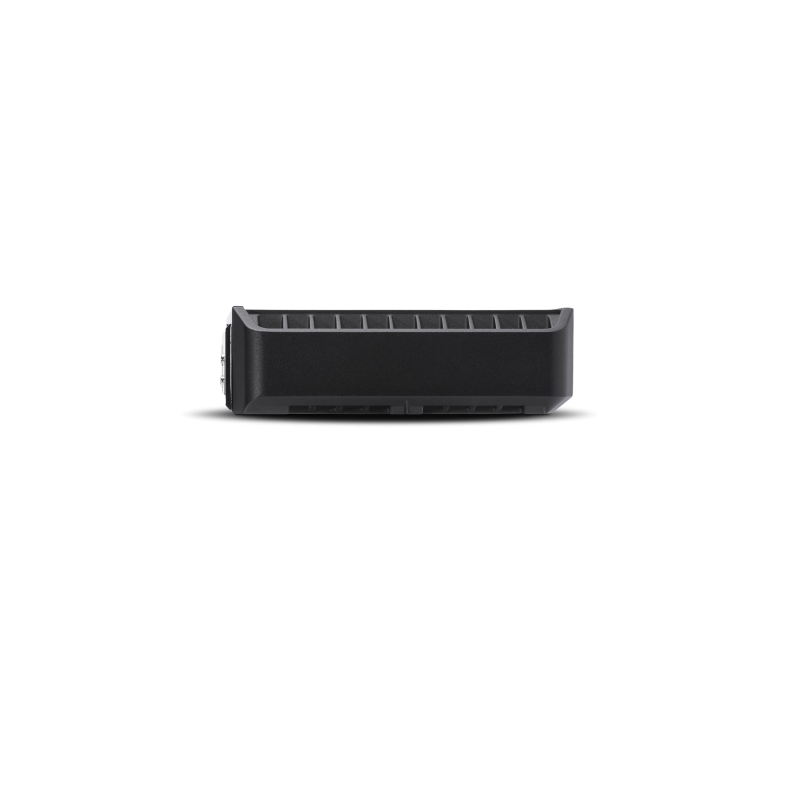

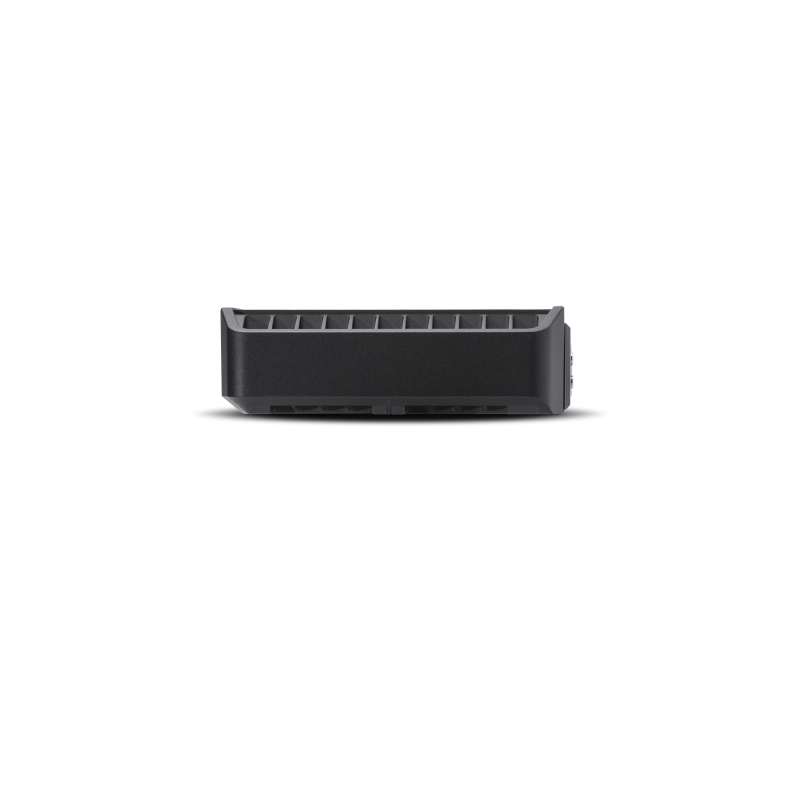

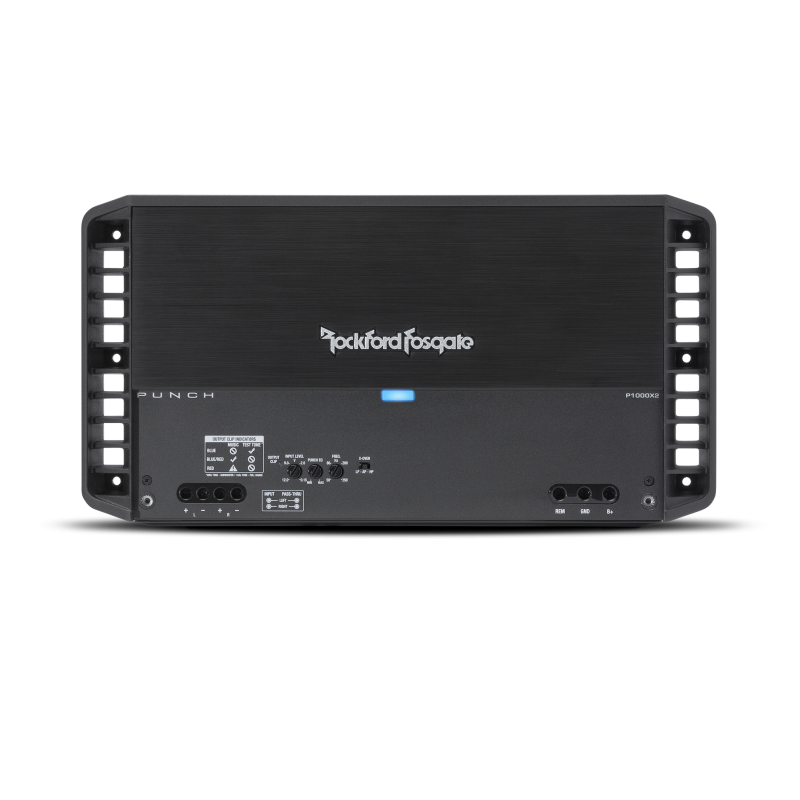

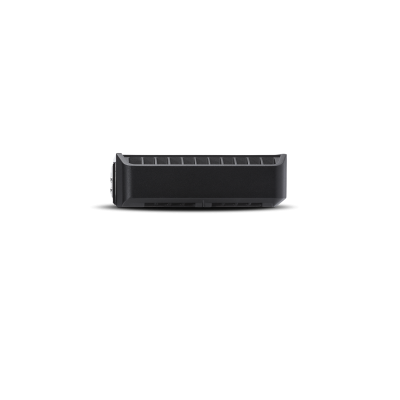

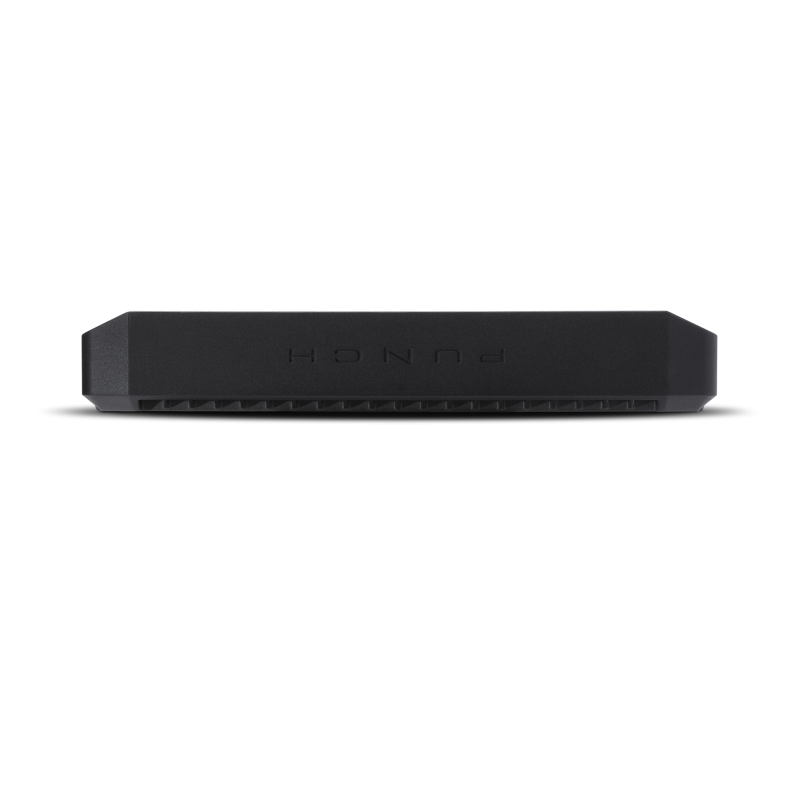

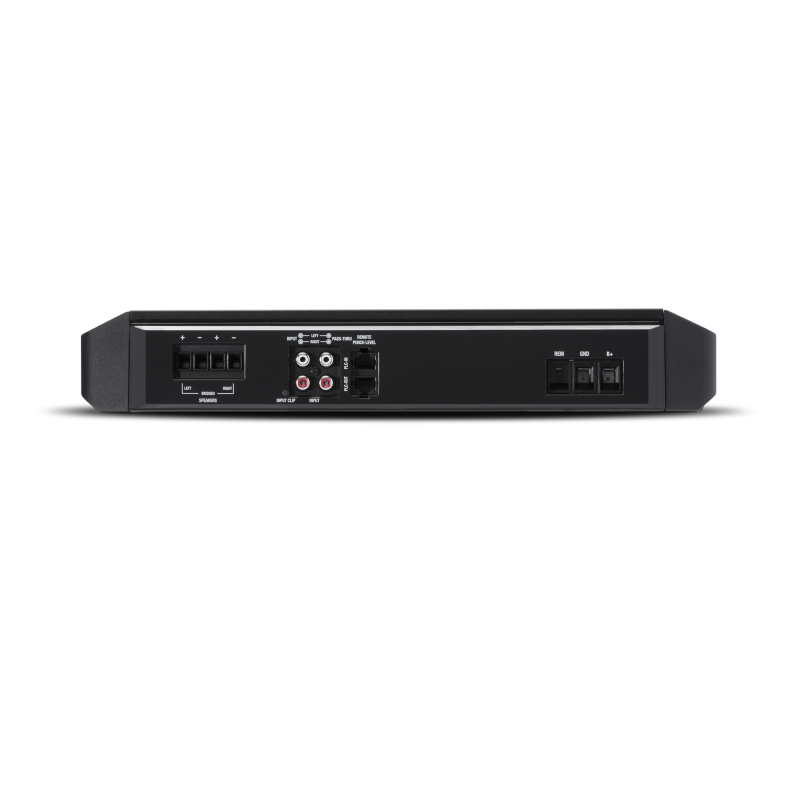

The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
Overview
The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
Technologies
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

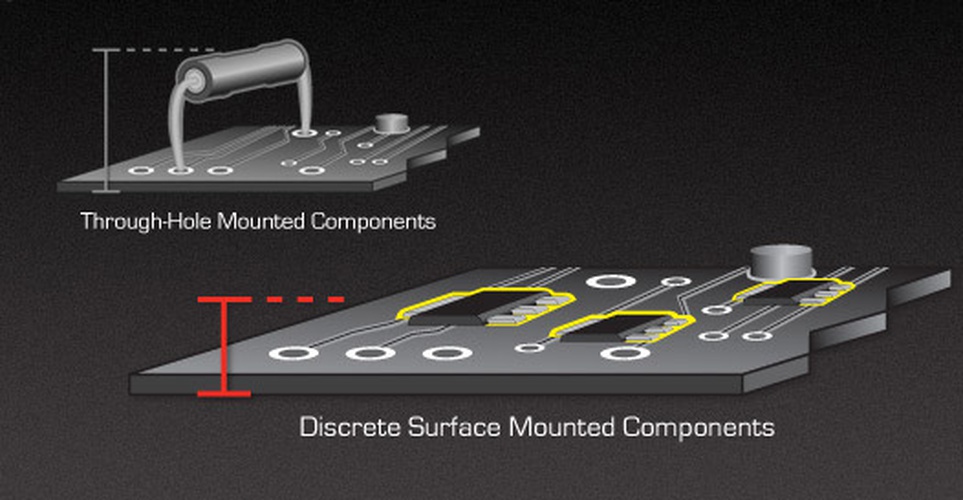

DSM

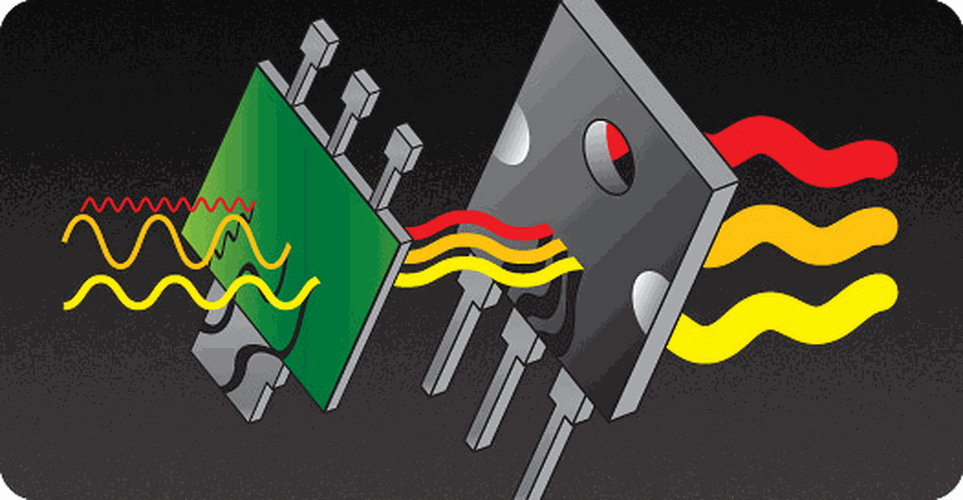

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

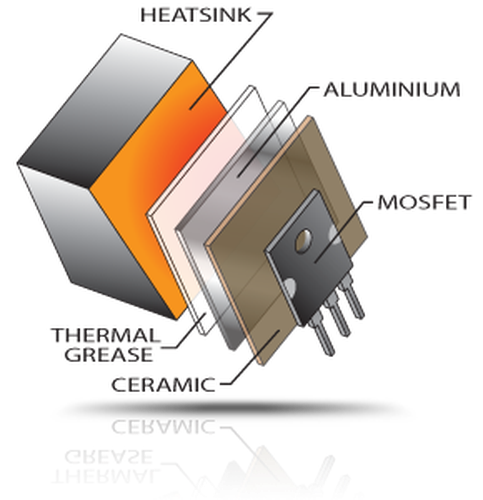

MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
| Specifications | |
|---|---|
| Number of Channels | 2 |
| Total Power (Sum of Rated Power) | 1000 Watts RMS |
| Rated Power (RMS Continuous Power) | 300 Watts x 2 @ 4-Ohm 500 Watts x 2 @ 2-Ohm 1000 Watts x 1 @ 4-Ohm Bridged |
| Dynamic Power (PVC/PowerCube®) | 401 Watts x 2 @ 4-Ohms 0° Res 656 Watts x 2 @ 2-Ohms 0° Res |
| Bridgeable | Yes |
| Frequency Response | 20Hz to 20kHz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 69% @ 4-Ohm 64% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Low level: 1 RCA pair |
| Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP/AP/HP switch position |
| Crossover Controls | High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 140 A |
| Average Current Draw (13.8V Music) | 70 A |
| Max. Current Draw (13.8V Sinewave) | 140 A |
| Suggested Alternator | 100 A |
| Dimensions (H x W x D) | 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm) |
| Shipping Weight | 15 Lbs. (6.80 Kg.) |
