Rockford Fosgate P300X1

Rockford Fosgate Punch 300 Watt Full-Range Mono Amplifier - P300X1



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Price$449.99
Savings$70.00
Our Price $379.99 CAD
Sale Ends : April 30, 2025
On Sale
Buy Online
Availability
Schedule Delivery

Literature

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.

Overview

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • 1 Year Warranty

Technologies

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

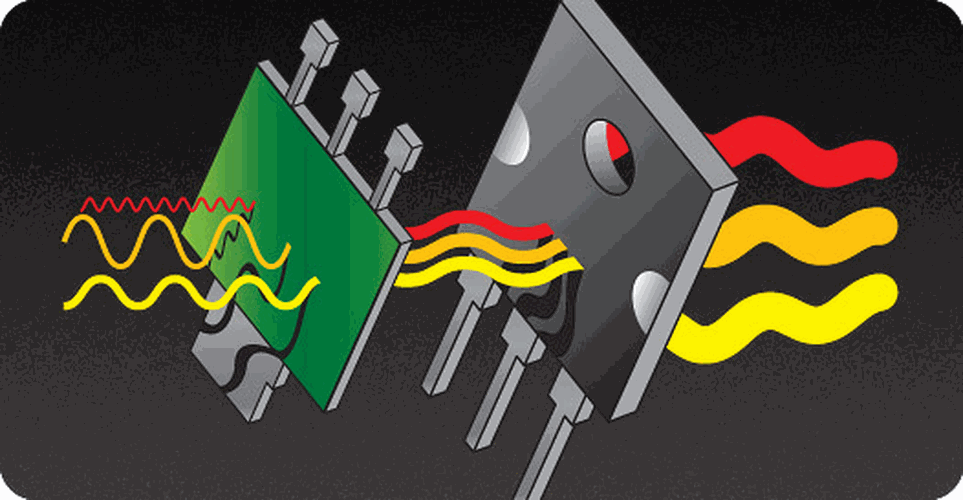

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

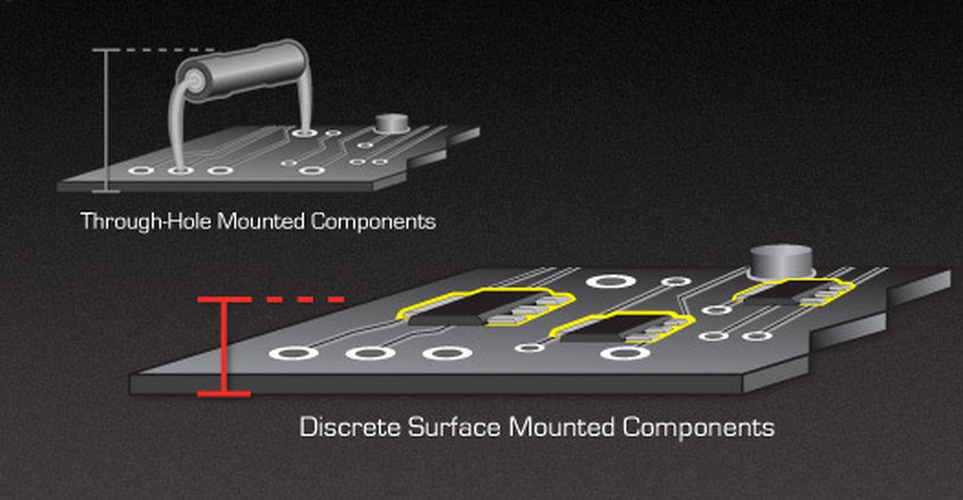

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

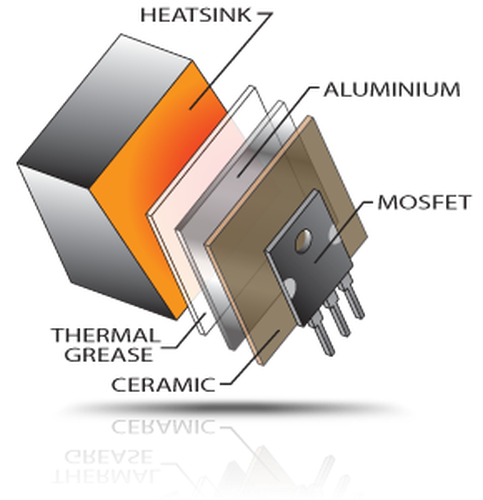

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
Number of Channels1
Total Power (Sum of Rated Power)300 Watts
Rated Power (RMS Continuous Power)200 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
Dynamic Power (PVC/PowerCube®)260 Watts x 1 @ 4-Ohms 0° Res
444 Watts x 1 @ 2-Ohms 0° Res
BridgeableNo
Frequency Response20Hz to 20kHz +/- 1.0dB
Input Sensitivity150 mV - 12 V
Circuit Topology ClassClass A/B
Efficiency (average)74% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHi/Low level: 1 RCA pair
Signal OutputLow Level: 1 RCA Pair
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover ControlsHigh-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge8 AWG to 4 AWG
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)50 A
Average Current Draw (13.8V Music)23 A
Max. Current Draw (13.8V Sinewave)45 A
Suggested Alternator75 A
Dimensions (H x W x D)2.38 x 7.76 x 9.86 (in)
6.05 x 19.71 x 25.04 (cm)
Shipping Weight9.5 Lbs. (4.30 Kg.)
