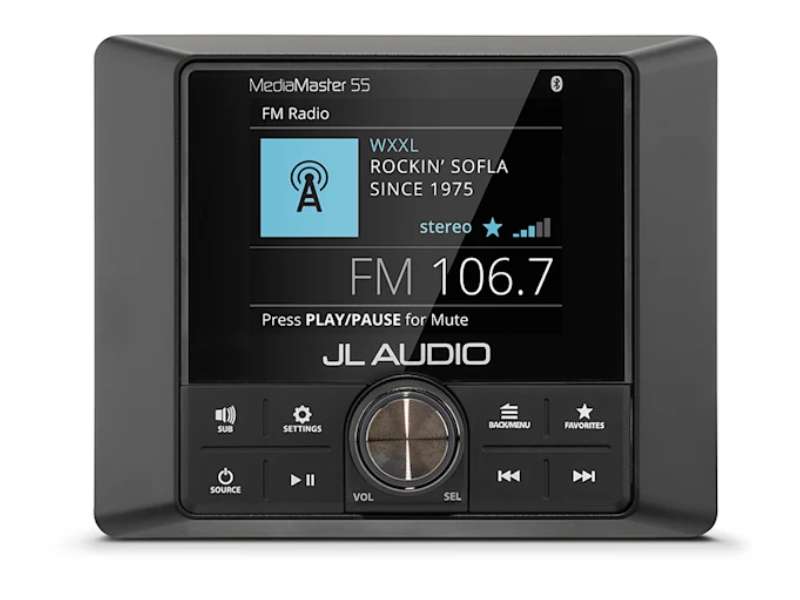

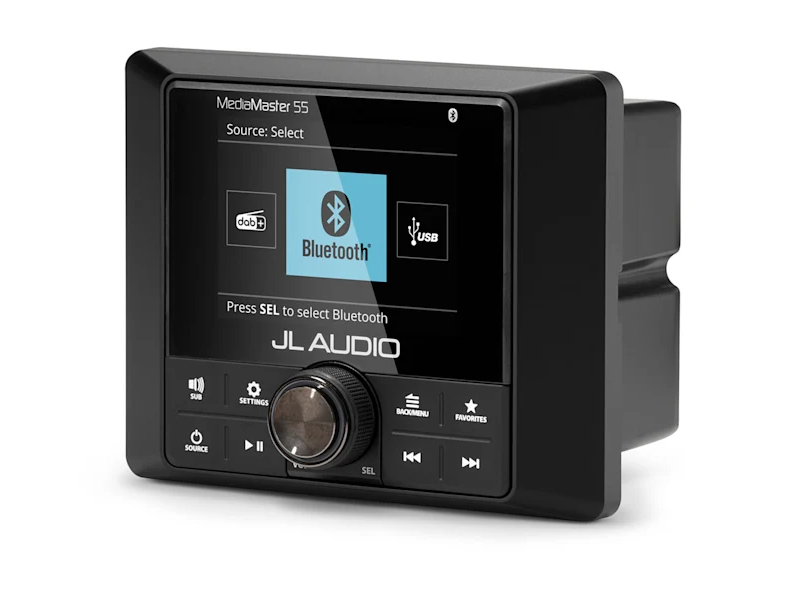

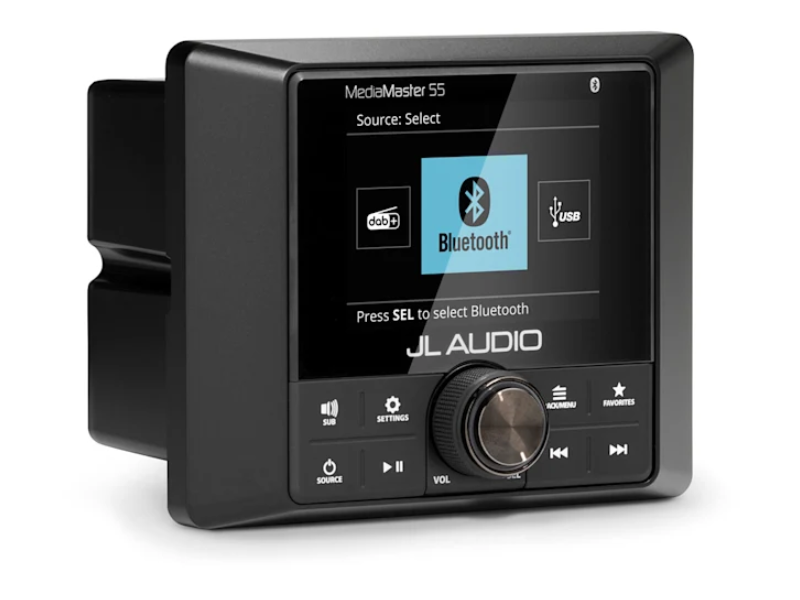

JL AUDIO MM55

JL Audio MediaMaster 55 Weatherproof Stereo with Full-Color LCD Display - MM55



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Our Price $579.99 CAD
Availability
Schedule Delivery

Literature




ADD A SUPER SOUNDTRACK TO YOUR OUTDOOR FUN

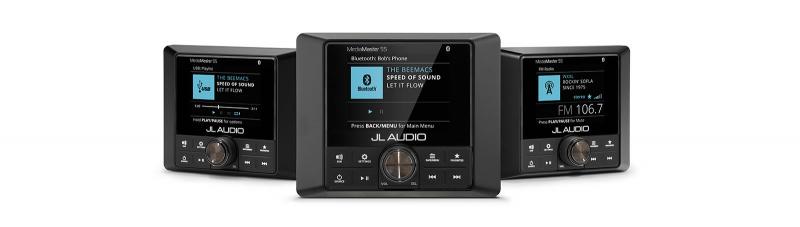

Engineered to deliver outstanding audio fidelity and advanced performance features on your boat or powersport vehicle, the compact MediaMaster 55 digital stereo puts amazing sound at your fingertips for any outdoor adventure. A hideaway receiver, MM55-HR, is also available, offering all the features of MM55 — minus the LCD display and physical controls.



RUGGED, WEATHER-RESISTANT DESIGN IS BUILT TO WITHSTAND THE ELEMENTS

BRIGHT 2.8-INCH LCD COLOR DISPLAY GIVES OUTSTANDING READABILITY ON MM55

ONBOARD AMP POWERS UP TO 100 WATTS (25-WATT RMS x 4) OF DAZZLING SOUND

CONTROL 3 MAIN AUDIO ZONES, EACH WITH A DEDICATED SUBWOOFER OUTPUT

STORE UP TO 18 OF YOUR FAVORITE CHANNELS ACROSS ALL TUNER BANDS

CERTIFIED NMEA 2000® NETWORK CONNECTIVITY FOR USE WITH MULTIFUNCTION DISPLAYS

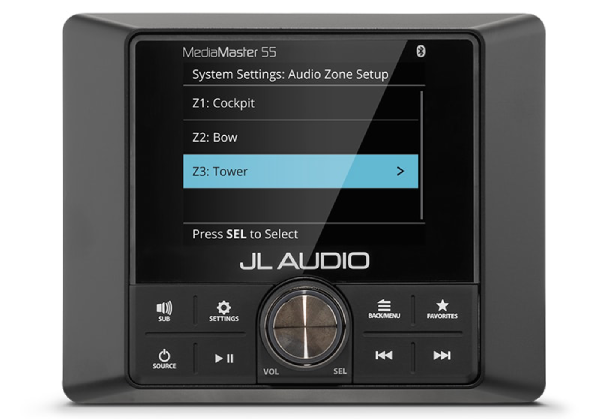

MM55_02

POWERFUL AUDIO OUTPUT

The robust audio output options include a built-in 100-watt amplifier (25-watt RMS x 4 channels) plus 9 channels of audiophile-quality preamp outputs from 3 separate audio zones, each with a dedicated subwoofer output.

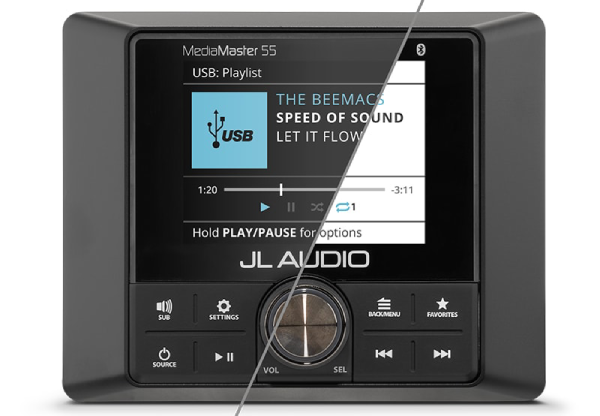

MM55_03

EASY-TO-READ DISPLAY

The MM55 stereo’s ultrabright 2.8-inch full-color LCD display features separate day/night themes for clear visibility in all lighting conditions. While in motion, you’ll appreciate the intuitive user interface and oversized, illuminated control knob along with the large backlit buttons.

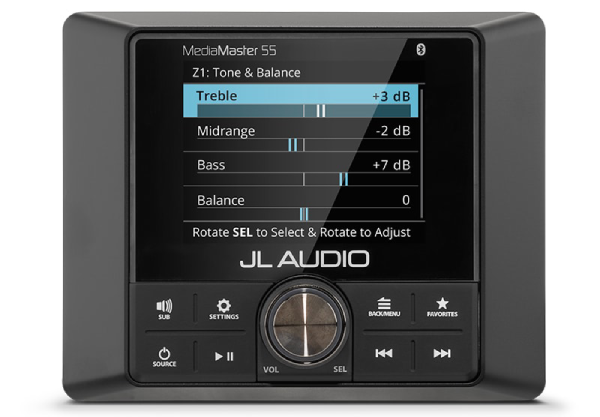

MM55_04

THREE MAIN AUDIO ZONES

The stereo’s high-fidelity sound is deployed via 3 separate audio zones, each with its own independent control options and subwoofer output, with built-in, selectable low-pass crossover. Volume, tone (bass, midrange, treble) and balance can all be adjusted separately — or linked with zone 1. Max volume levels can be set for each zone.


MM55_05

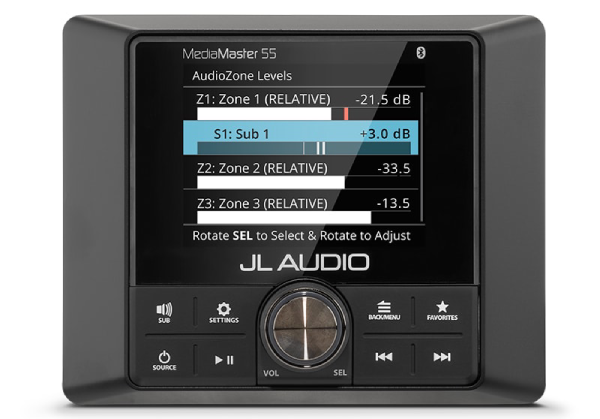

SIMPLE ZONE LEVEL CONTROL

On-the-fly level controls make adjusting audio zones a breeze — while the unit’s volume limit feature ensures that nobody gets blasted inadvertently. The RCA zones feature the JL Audio zero-clipping circuit design with self-limiting tone controls to help prevent speaker damage at high listening levels.


MM55_06

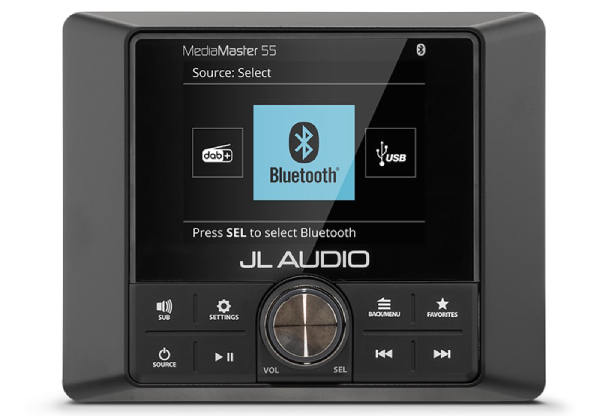

MODERN MEDIA CONNECTIVITY

All the digital and analog media formats come alive on the MM55 stereo. It includes an AM/FM tuner1, BLUETOOTH® connectivity, USB connections with charging for USB drives or iPhone® devices plus 2 auxiliary RCA inputs — all designed to ensure nonstop enjoyment of the soundtracks to all your adventures.



REMOTE CONTROL OPTIONS

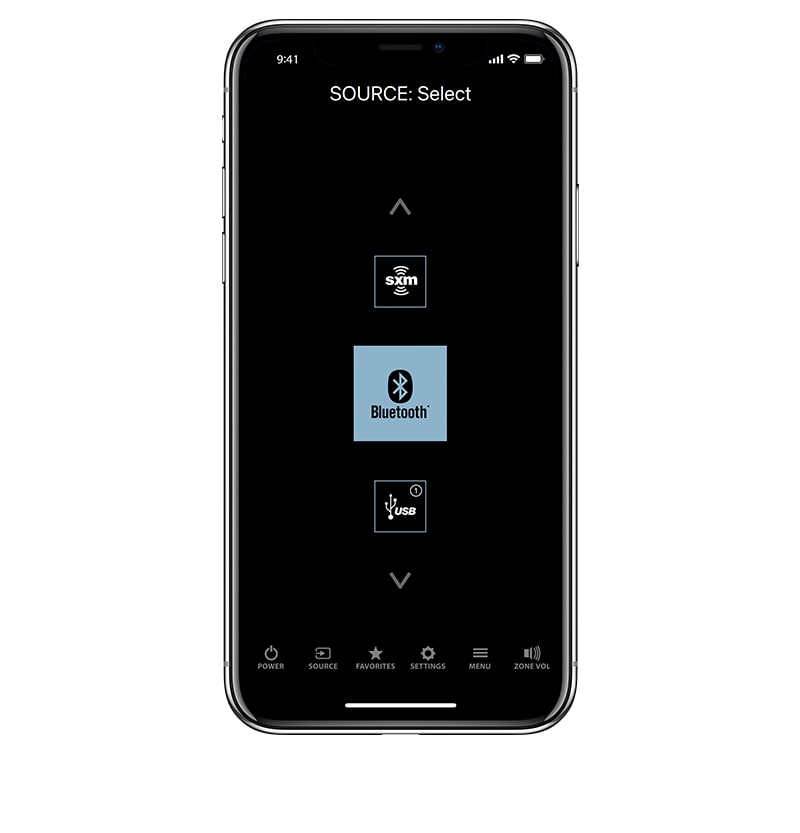

Wired and wireless remotes (sold separately) are available to add convenient auxiliary control functionality to your MediaMaster stereo. There’s even an app that lets you enjoy untethered control from your compatible smartphone or mobile device.



STEREO FEATURES

DIGITAL HD RADIO

Built-in tuners are available for digital HD Radio™ in North America and DAB+ digital radio in Europe1.

GLOBAL AM/FM

Select the global digital AM/FM radio tuner, and see an RDS display of extended FM program info (where available).

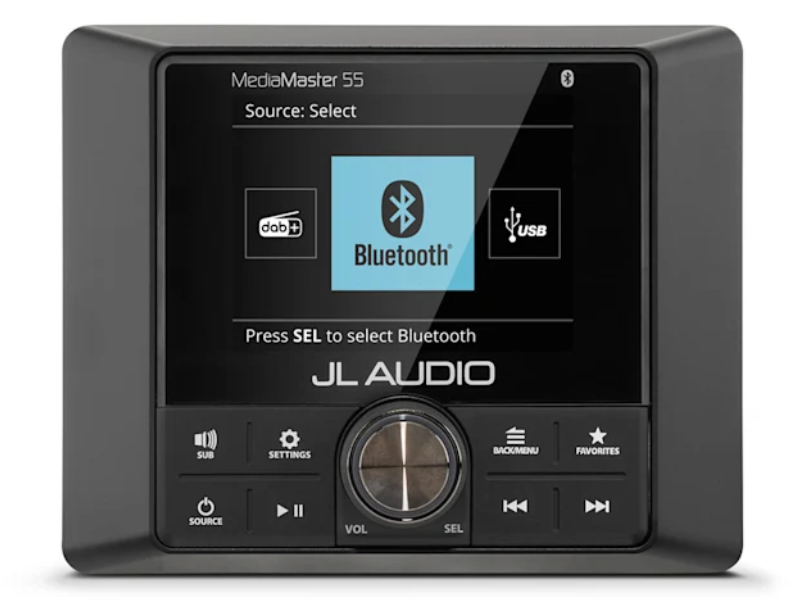

BLUETOOTH STREAMING

Stream audio via BLUETOOTH wireless technology with Qualcomm® aptX™ audio codec for maximum fidelity.

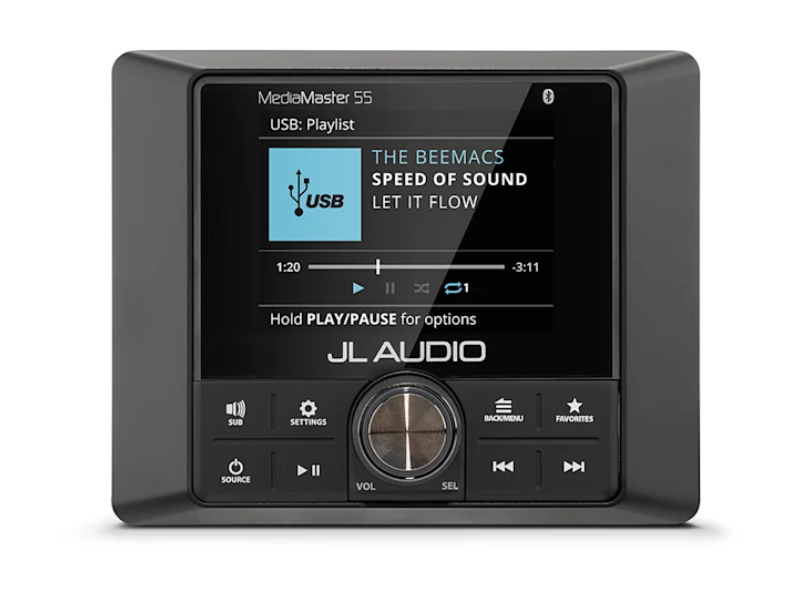

USB DIGITAL CONNECTION

USB direct digital connections let you access music files on your compatible iPhone or USB storage device.

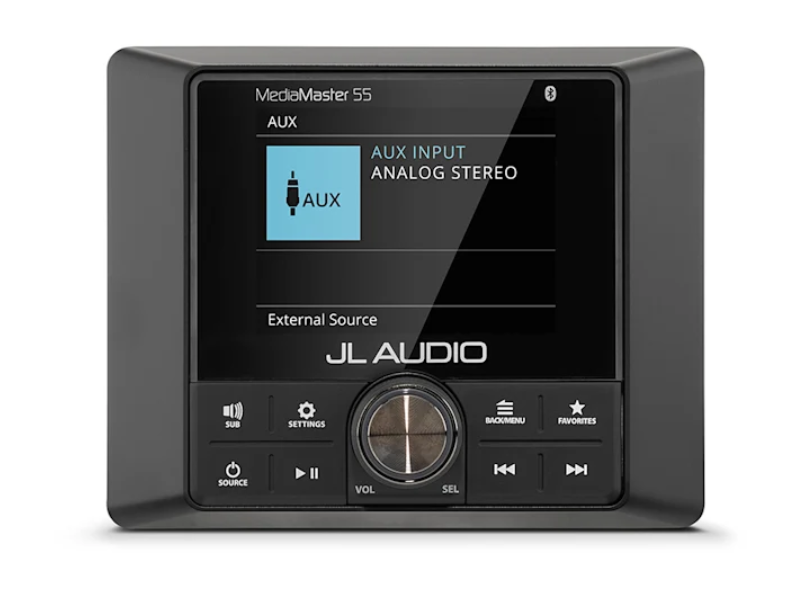

ANALOG AUX INPUT

An auxiliary RCA input provides connection for a wide range of analog audio sources.



In the Box

  • MediaMaster® stereo
  • Power connections wire harness
  • Speaker connections wire harness
  • Mounting gasket (not included with Hideaway Receiver)
  • Mounting template
  • Four mounting screws
  • Protective sun cover (not included with Hideaway Receiver)

General
Warranty2 years
Current draw (max)15 A
Operating temperature range-4° F to +149° F (-20° C to +65° C)
Control Surface Dust/Water Rating (when properly installed)IP67
Physical dimensions (Depth)MM55: 3.66" (93 mm)
MM55-HR: 4.96" (126 mm)
Physical dimensions (Width)MM55: 4.65" (118 mm)
MM55-HR: 7.68" (195 mm)
Physical dimensions (Height)MM55: 3.74" (95 mm)
MM55-HR: 2.28" (58 mm)
Networking
NMEA 2000® LEN1 (50 mA)
BLUETOOTH® wireless rangeUp to 35 ft (11 meters)
Wireless frequencies/protocolsBLUETOOTH®: 2.4 GHz @ +14 dBm nominal
AUDIO
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)25 W x 4
Electrical Features
Power Input10-16 VDC
Stereo Features
Display sizeMM55: 2.8" (71 mm)
Display typeMM55: color TFT LCD, backlit
Display resolutionMM55: 320 x 240
Optically bonded displayYes
Built-in amplifierClass D (2 Ω stereo-stable)
Multi-Zone™ technologyYes
BLUETOOTH® wireless technologyYes
DAB+ readyYes
Multi-language interfaceMM55: English/French/German/Italian/Spanish
Software updatesUSB
SOURCES
Supported sourcesDigital AM/FM with RDS/DAB+ (Europe only)/BLUETOOTH®/USB audio/AUX
Supported audio formats (USB)MP3, MP4, WAV, AAC, M4A, M4B
CONNECTIONS
Auxiliary inputs (RCA)1 (2V or 1V RMS Input Sensitivity)
NMEA 2000® ports1 (Micro-C connector)
USB 2.0 ports1 USB storage device (1 A charging output)
AM/FM ports (Motorola antenna connector)1
Speaker connections4 (2 zones amplified)
RCA pre-out (left, right and subwoofer - requires external amplification)3 zones
Line out (requires external amplification)3 (L + R per zone)
Subwoofer out (requires external amplification)3 (1 mono output per zone)
